| Catalog ID | NES-KR-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | December 9, 1993 |
| Publisher | Nintendo |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KR-FRA/FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code |
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9324 |
| Est First Run | June 1993 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FRA-KR-0 PRG | 512 KB | 15205A4F | 1 |
| CHR0 | FRA-KR-0 CHR | 256 KB | AF7693D2 | 2 |
| N/A | ROMs Combined | 768 KB | B2EF7F4B | 1 |

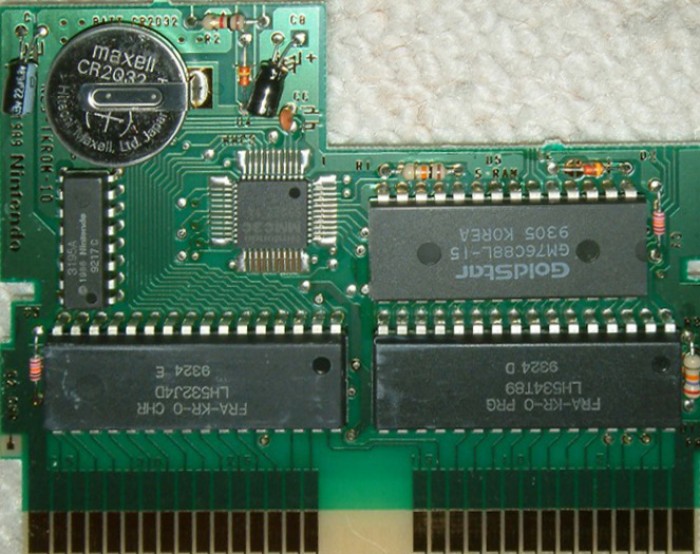

| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH534T 89 | Mask ROM 512 KB | DIP-32 | 9324 D | 9324 | |
| U2 CHR | Sharp | LH532J 4D | Mask ROM 256 KB | DIP-32 | 9323 E | 9323 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9217 C | 9217 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9222 1 A | 9222 | |
| U5 S-RAM | GoldStar | GM76C88L-15 | SRAM 8 KB | DIP-28 | 9305 | 9305 |
