| Catalog ID | NES-UC-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1986 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | FRA |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code |

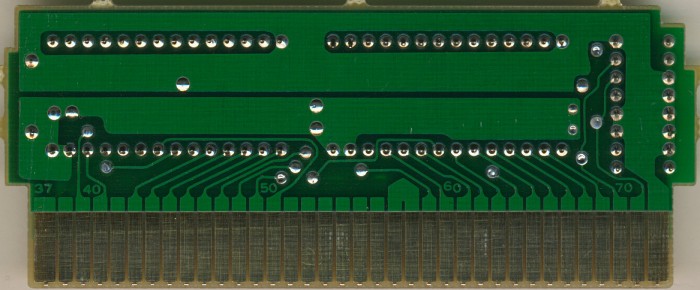

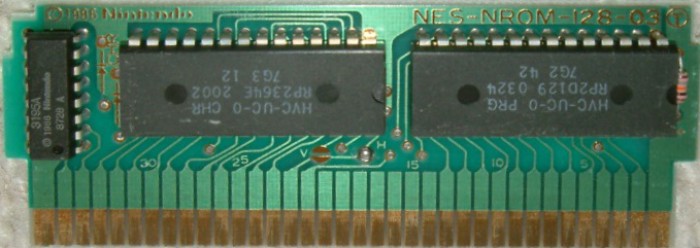

| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8730 |
| Est First Run | July 1987 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-UC-0 PRG | 16 KB | D31E4238 | 7 |
| CHR0 | HVC-UC-0 CHR | 8 KB | 8777CEF2 | 7 |
| N/A | ROMs Combined | 24 KB | 656D4265 | 7 |
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP2D129 0324 | Mask ROM 16 KB | DIP-28 | 7G2 42 | 8729 | |
| CHR | Ricoh | RP2364E 2002 | Mask ROM 8 KB | DIP-28 | 7G3 12 | 8730 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8728 A | 8728 |
