Release Info
| Catalog ID | AVE-SL |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1992 |
| Publisher | AVE |
| Developer | Odyssey Software |
| Players | 1 |
| Peripherals | NES Controller |

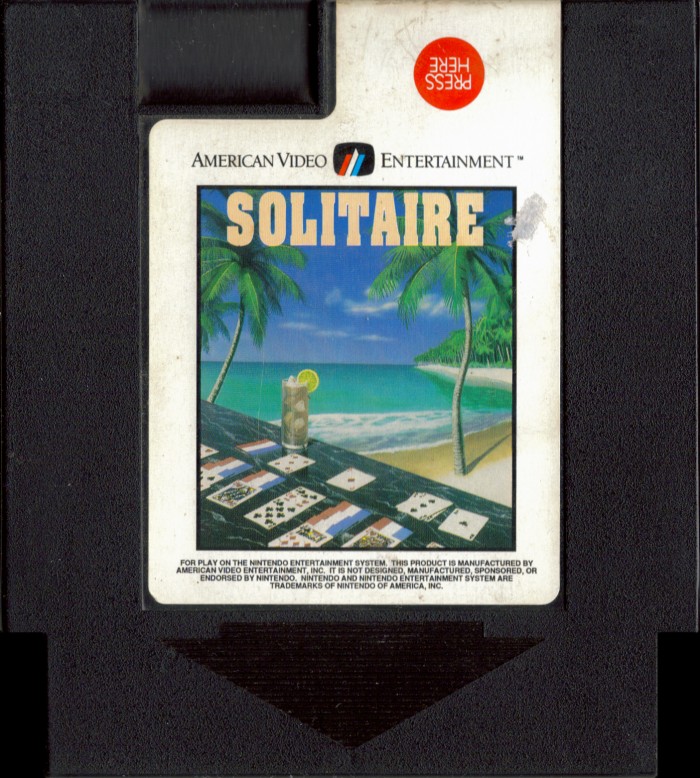

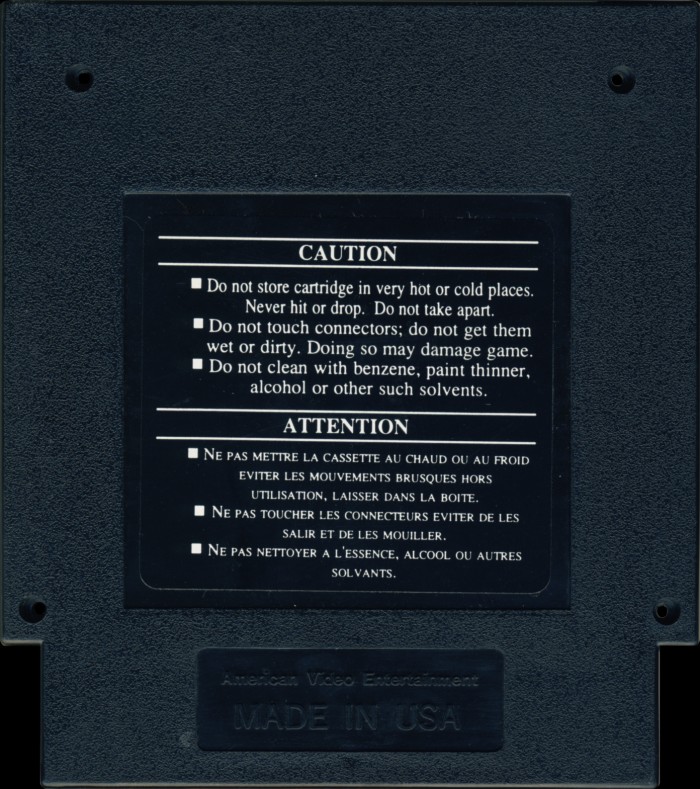

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Square Corner |
| Embossed Text | American Video Entertainment Made in USA |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

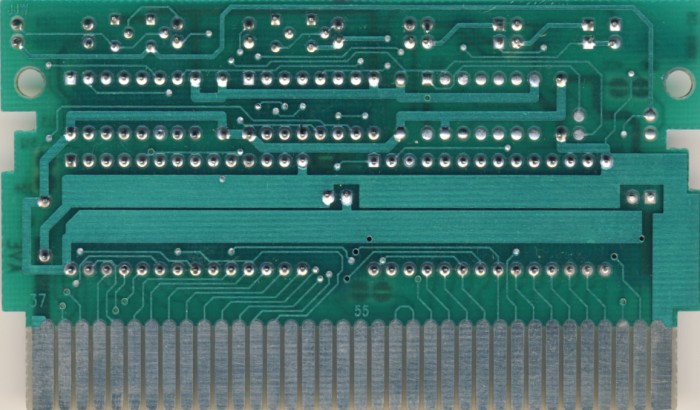

PCB Properties
| Name | NINA-06 |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9213 - 9213 (3) |
| Est First Run | March 1992 |
| PCB Class | AVE-NINA-06 |
| iNES Mapper | 79 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SOLI-PRG-R11 3ED7 | 32 KB | 1C779CD7 | 2 |
| CHR0 | SOLI-CHR 61A6 | 32 KB | AF78116A | 3 |
| N/A | ROMs Combined | 64 KB | B6A2B981 | 2 |

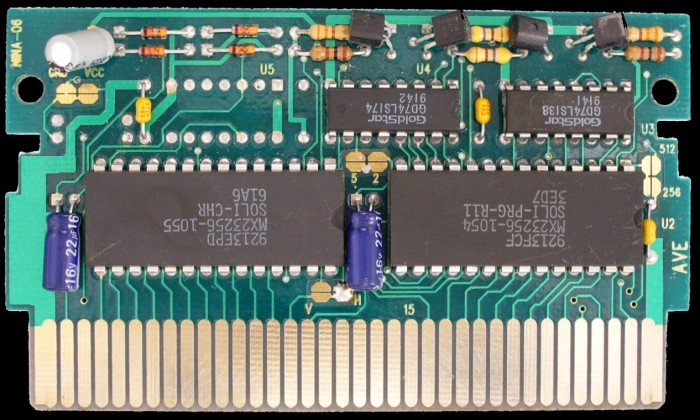

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Macronix | MX23256 1055 | Mask ROM 32 KB | DIP-28 | 9213 EPD | 9213 | |
| U2 | Macronix | MX23256 1054 | Mask ROM 32 KB | DIP-28 | 9213 FCF | 9213 | |
| U3 | GoldStar | GD74LS138 | 74-138 Series | DIP-16 | 9141 | 9141 | |
| U4 | GoldStar | GD74LS174 | 74-174 Series | DIP-16 | 9142 | 9142 |
