Release Info
| Catalog ID | NES-R6-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 1993 |
| Publisher | Hi Tech Expressions |
| Developer | Radiance Software |
| Players | 1 |
| Peripherals | NES Controller |

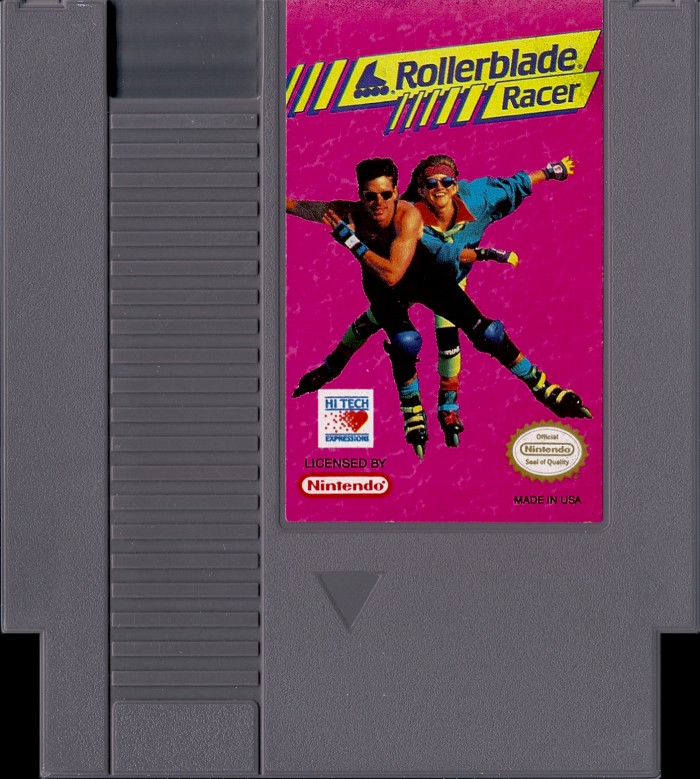

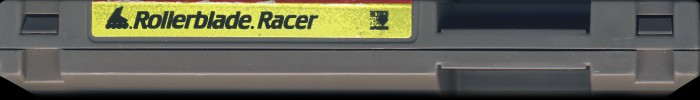

Cart Properties
| Cart Producer | Hi Tech Expressions |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Manufactured by Hi Tech Expressions Licensed by Nintendo Made in U.S.A. |
| Front Label ID | Not Present |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code |

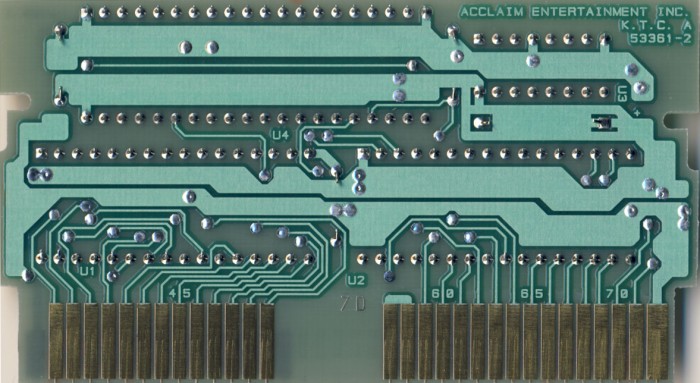

PCB Properties
| Name | 53361-2 |
|---|---|
| PCB Producer | Acclaim |
| Manufacturer | Key Tronic |
| Mfg Range | 9249 - 9249 (2) |
| Est First Run | December 1992 |
| PCB Class | ACCLAIM-MC-ACC |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MC-ACC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-R6-USA PRG | 128 KB | 20574509 | 2 |
| CHR0 | NES-R6-USA CHR | 128 KB | FDC64E50 | 2 |
| N/A | ROMs Combined | 256 KB | 2370C0A9 | 2 |

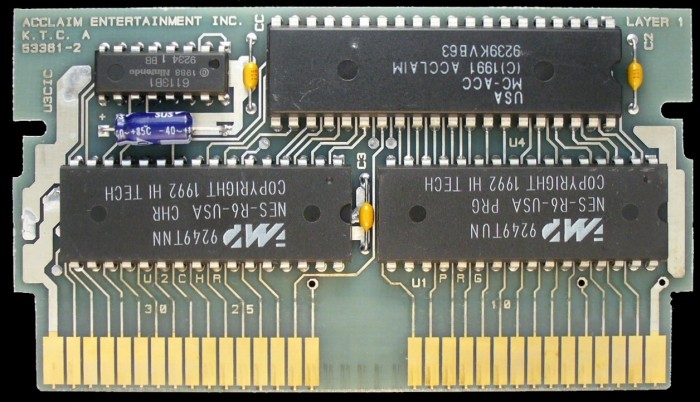

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9249 TUN | 9249 | |
| U2 CHR | IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9249 TNN | 9249 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9234 1 BB | 9234 | |
| U4 | Acclaim | MC-ACC | Acclaim MC-ACC | DIP-40 | 9239 KVB63 | 9239 |
