Release Info
| Catalog ID | NES-4T-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1990 |
| Publisher | Romstar |
| Developer | Visco |
| Players | 2 |
| Peripherals | NES Controller |

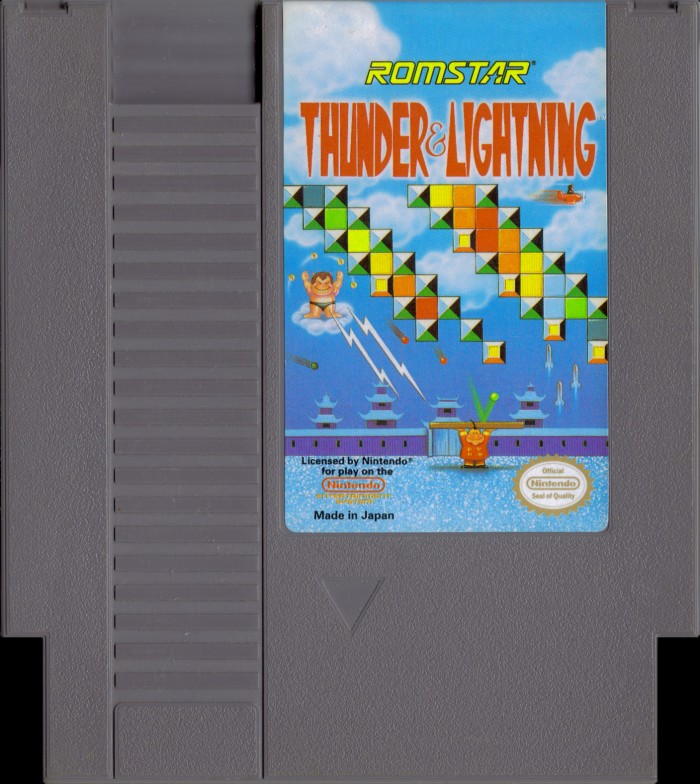

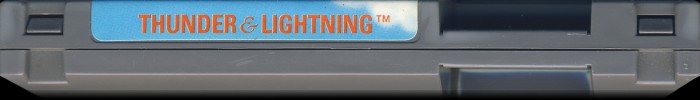

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

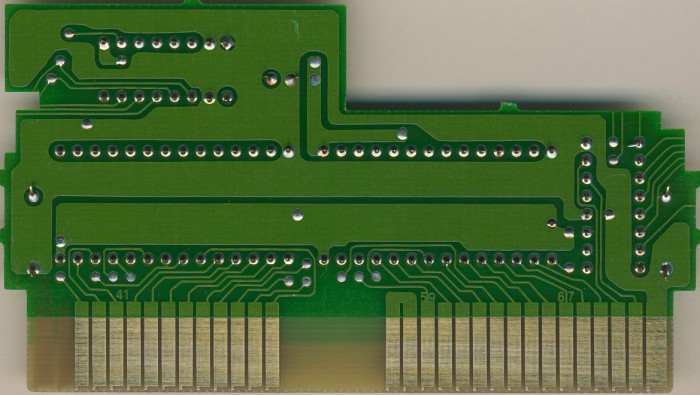

PCB Properties
| Name | NES-GNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9044 |
| Est First Run | November 1990 |
| PCB Class | NES-GNROM |
| iNES Mapper | 66 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-4T-0 PRG | 128 KB | 7BF67199 | 1 |
| CHR0 | NES-4T-0 CHR | 32 KB | A491139B | 1 |
| N/A | ROMs Combined | 160 KB | D80B44BC | 1 |

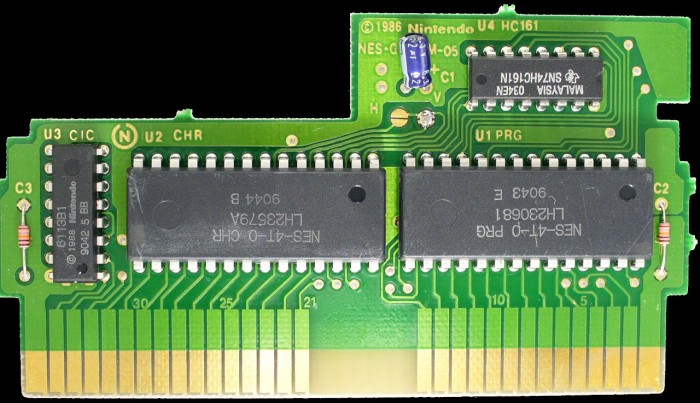

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 81 | Mask ROM 128 KB | DIP-28 | 9043 E | 9043 | |
| U2 CHR | Sharp | LH2357 9A | Mask ROM 32 KB | DIP-28 | 9044 B | 9044 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9042 5 BB | 9042 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 034 EN | 9034 |
