Release Info
| Catalog ID | NES-VL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 1993 |
| Publisher | Virgin Games |
| Developer | Probe |
| Players | 1 |
| Peripherals | NES Controller |

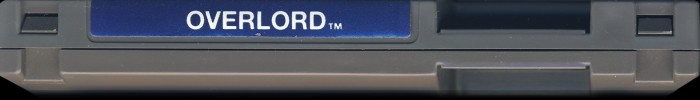

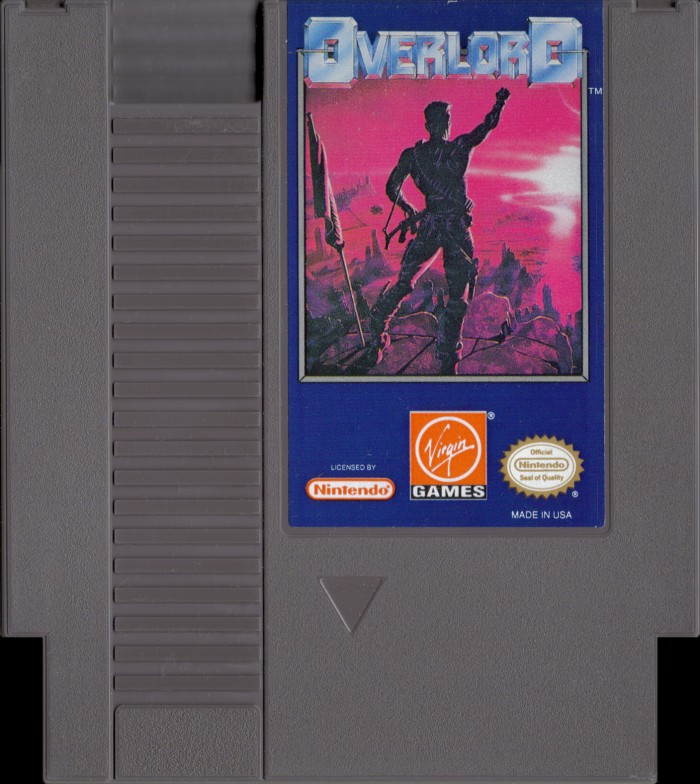

Cart Properties
| Cart Producer | Virgin Games |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Manufactured by Virgin Games Licensed by Nintendo Made in U.S.A. |
| Front Label ID | Not Present |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code |
PCB Properties
| Name | SN1-ROM AW REV. A |
|---|---|
| PCB Producer | Virgin Games |
| Manufacturer | Key Tronic |
| Mfg Range | 9242 |
| Est First Run | October 1992 |
| PCB Class | VIRGIN-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | OVLD | 256 KB | 2856111F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8949 5 AA | 8949 | |
| U2 | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 201 C | 9201 | |
| U3 | Sharp | LH5168-10L | SRAM 8 KB | DIP-28 | 9238 SB | 9238 | |
| U4 CHR | Sharp | LH5168-10L | SRAM 8 KB | DIP-28 | 9238 SB | 9238 | |
| U5 PRG | IMP | IM232000 | Mask ROM 256 KB | DIP-32 | 9242 UGN | 9242 | 56439 |
