Release Info
| Catalog ID | NES-CE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1989 |
| Publisher | Culture Brain |
| Developer | Culture Brain |
| Players | 2 |
| Peripherals | NES Controller |

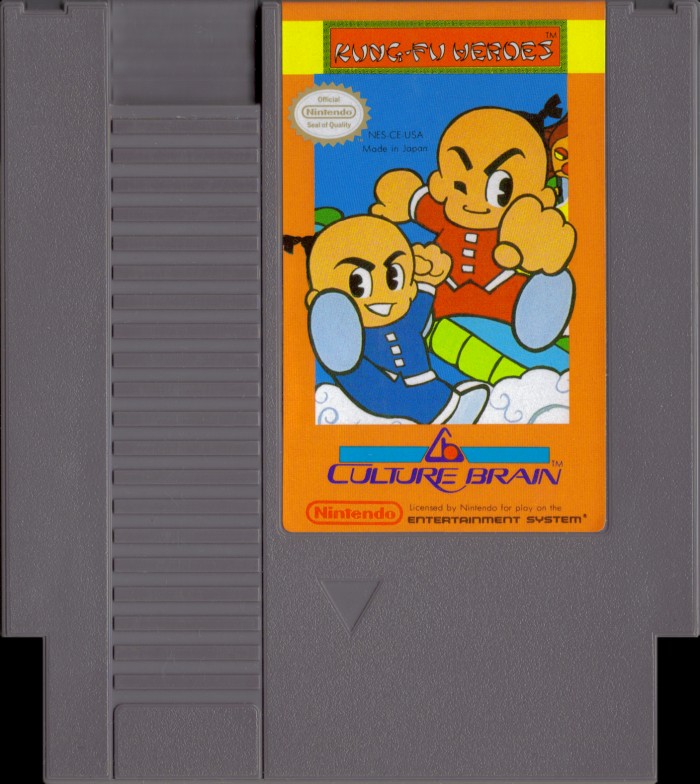

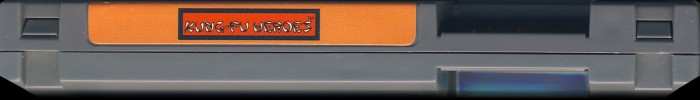

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CE-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

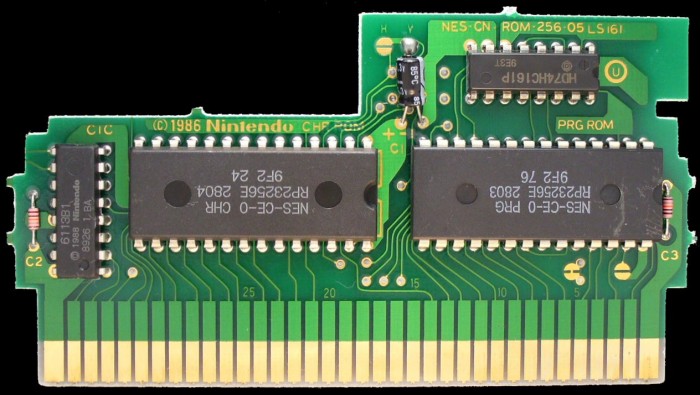

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8926 |
| Est First Run | June 1989 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-CE-0 PRG | 32 KB | E21B75D0 | 1 |
| CHR0 | NES-CE-0 CHR | 32 KB | EBF876AE | 1 |
| N/A | ROMs Combined | 64 KB | AA74A4D8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2803 | Mask ROM 32 KB | DIP-28 | 9F2 76 | 8924 | |
| CHR ROM | Ricoh | RP23256E 2804 | Mask ROM 32 KB | DIP-28 | 9F2 24 | 8924 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8926 1 BA | 8926 | |
| LS161 | Hitachi | HD74HC161P | 74-161 Series | DIP-16 | 9E3 T | 8920 |
