Release Info
| Catalog ID | NES-YF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1991 |
| Publisher | GameTek |
| Developer | Beam Software |
| Players | 2 |
| Peripherals | NES Controller |

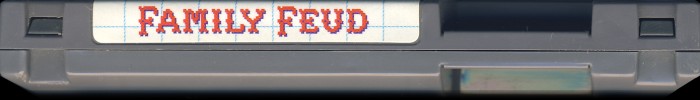

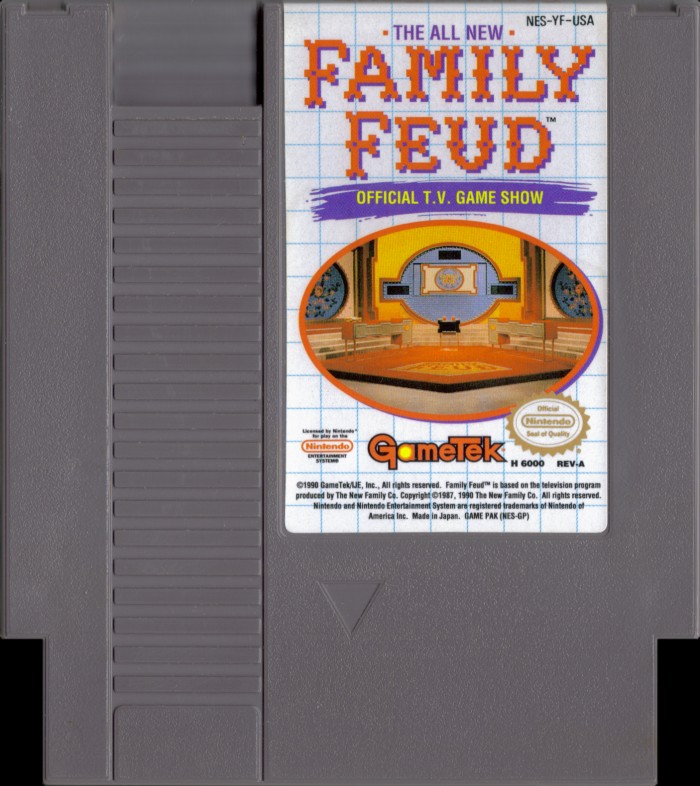

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-YF-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

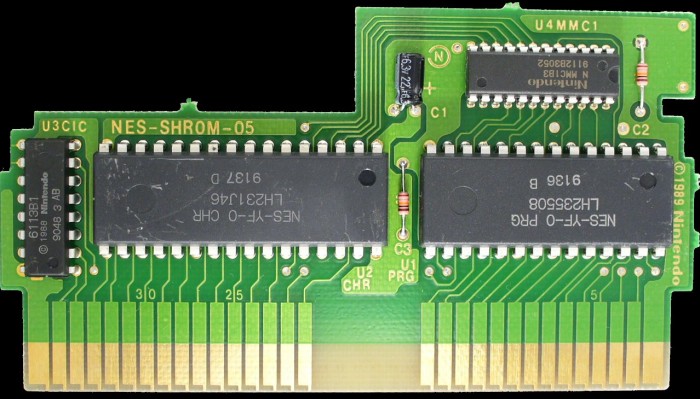

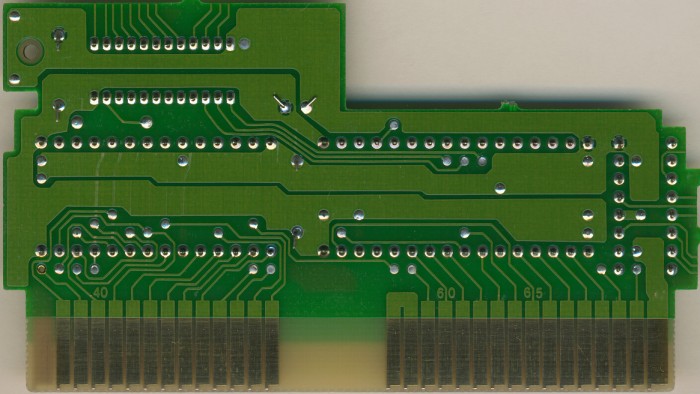

PCB Properties
| Name | NES-SHROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9137 - 9204 (2) |
| Est First Run | September 1991 |
| PCB Class | NES-SHROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-YF-0 PRG | 32 KB | 26F2B268 | 2 |
| CHR0 | NES-YF-0 CHR | 128 KB | CE9D5A5C | 2 |
| N/A | ROMs Combined | 160 KB | 51BEE3EA | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2355 08 | Mask ROM 32 KB | DIP-28 | 9136 B | 9136 | |
| U2 CHR | Sharp | LH231J 46 | Mask ROM 128 KB | DIP-32 | 9137 D | 9137 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9048 3 AB | 9048 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9112 B3052 | 9112 |
