Release Info
| Catalog ID | NES-JR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1986 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

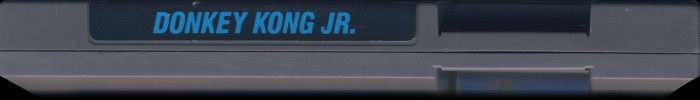

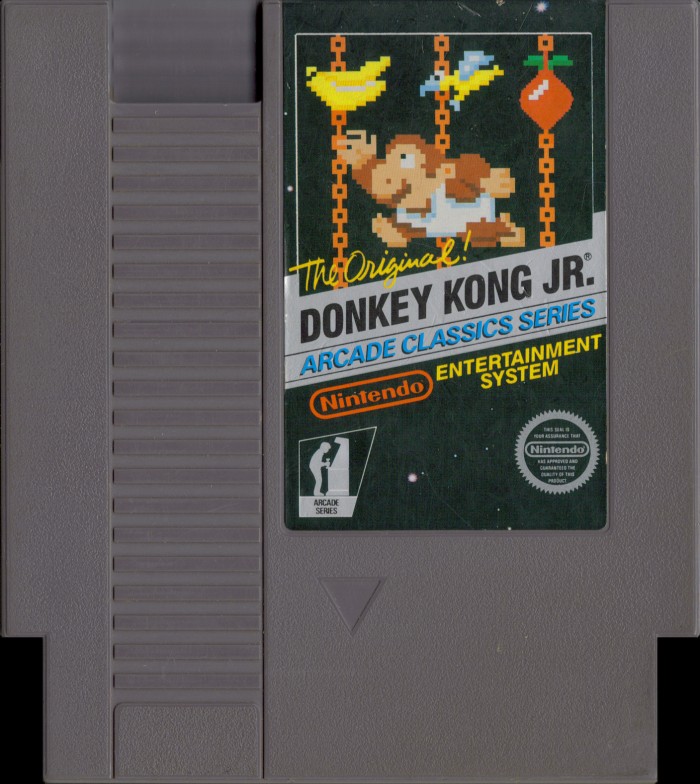

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 12 |

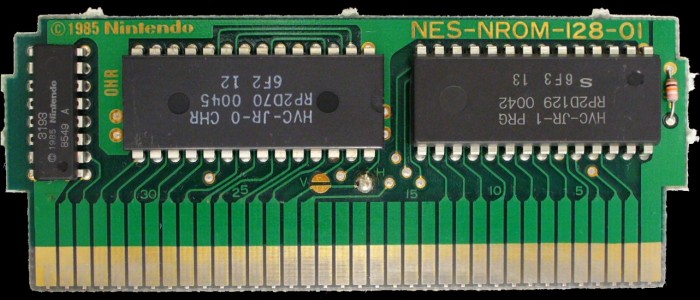

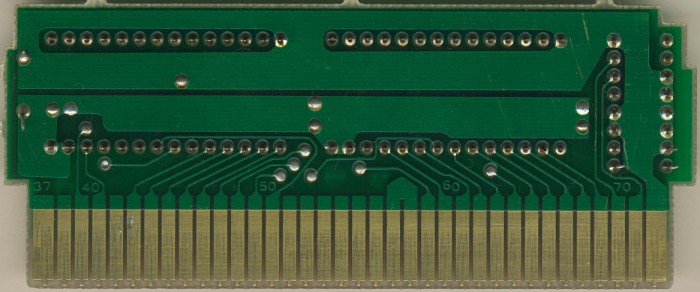

PCB Properties
| Name | NES-NROM-128-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8625 |
| Est First Run | June 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-JR-1 PRG | 16 KB | CF6C88B6 | 10 |
| CHR0 | HVC-JR-0 CHR | 8 KB | 852778AB | 10 |
| N/A | ROMs Combined | 24 KB | 4864C304 | 10 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | RP2D129 0042 | Mask ROM 16 KB | DIP-28 | 6F3 13 | 8625 | |
| CHR | Ricoh | RP2D70 0045 | Mask ROM 8 KB | DIP-28 | 6F2 12 | 8624 | |
| CIC | Sharp | 3193 | Nintendo CIC | DIP-16 | 8549 A | 8549 |
