Release Info
| Catalog ID | BNH-M-02 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | Bunch Games |
| Developer | Sachen / Joy Van |
| Players | 2 |
| Peripherals | NES Controller |

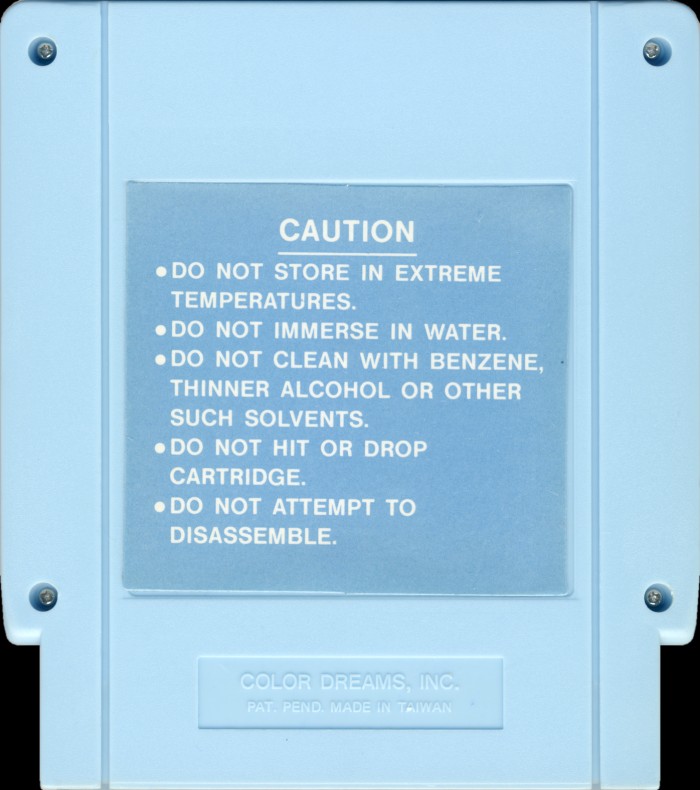

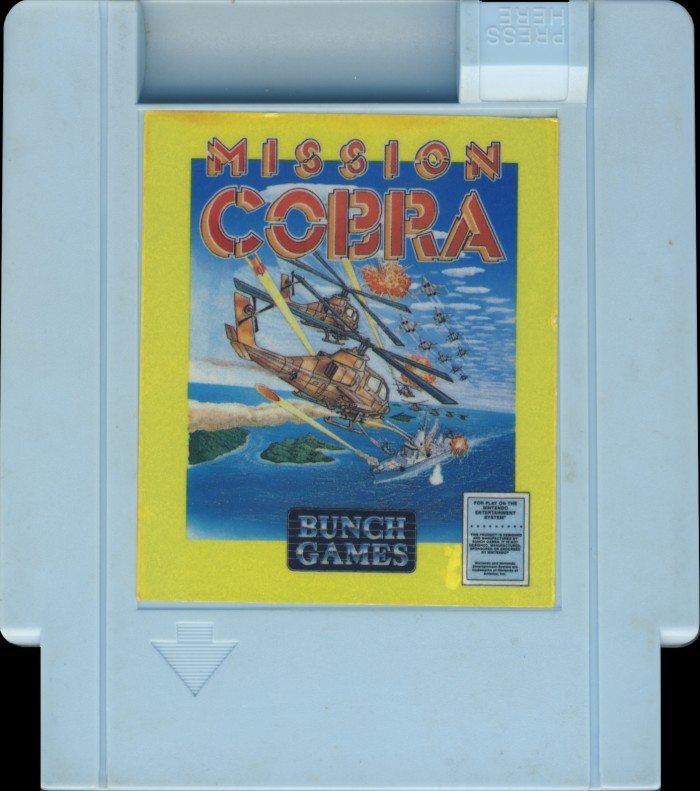

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Blue |
| Form Factor | Protruding Grip |
| Embossed Text | Color Dreams, Inc. Pat. Pend. Made in Taiwan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

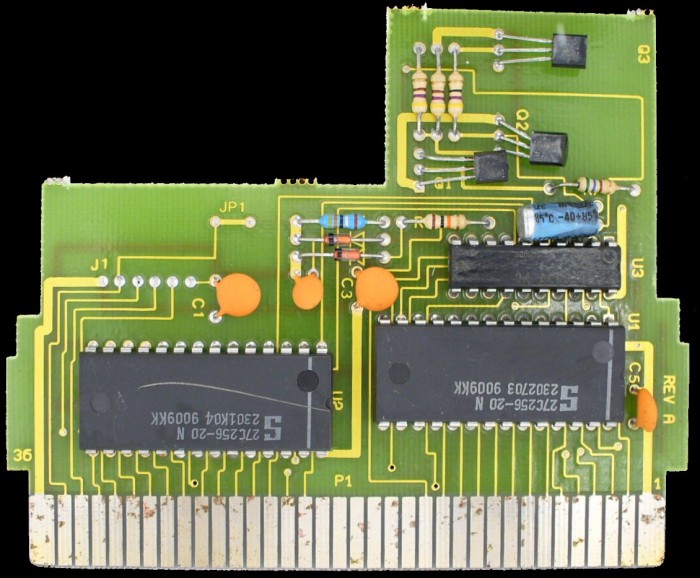

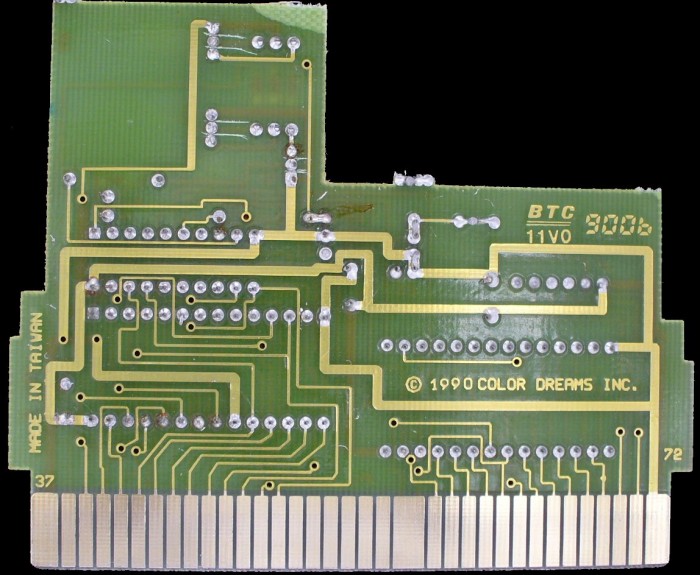

PCB Properties
| Name | UNK-COLORDREAMS-REVA |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9009 |
| Est First Run | March 1990 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 17AB5897 | 1 |
| CHR0 | Not Present | 16 KB | 1134F245 | 1 |
| N/A | ROMs Combined | 48 KB | 5DA9CEC8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Signetics | 27C256-20 N | PROM 32 KB | DIP-28 | 9009 KK | 9009 | 2302703 |
| U2 | Signetics | 27C256-20 N | PROM 32 KB | DIP-28 | 9009 KK | 9009 | 2301K04 |
| U3 | __Unknown | 74LS377N | 74-377 Series | DIP-20 |
