Release Info
| Catalog ID | NES-LD-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1988 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | NES Controller |

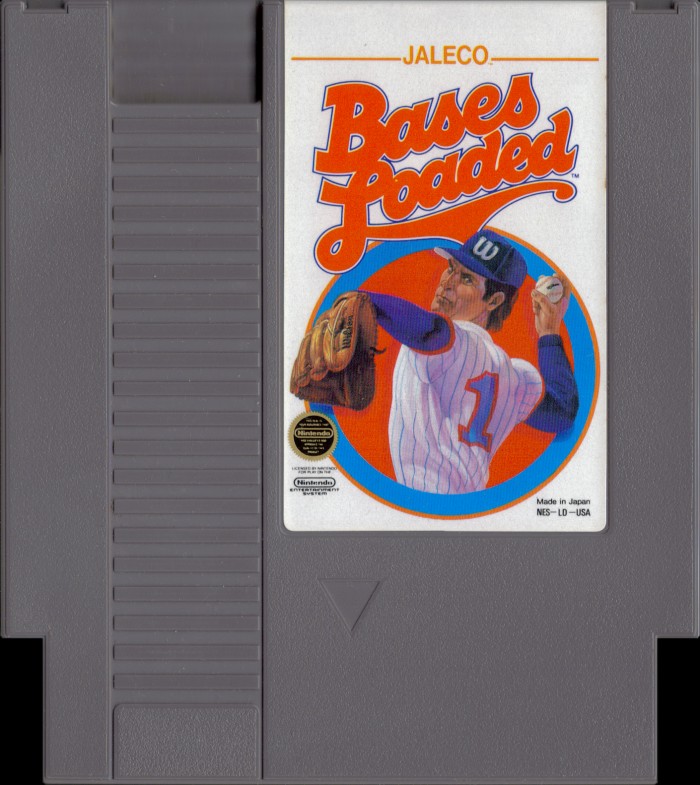

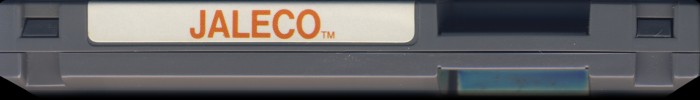

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LD-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 01 |

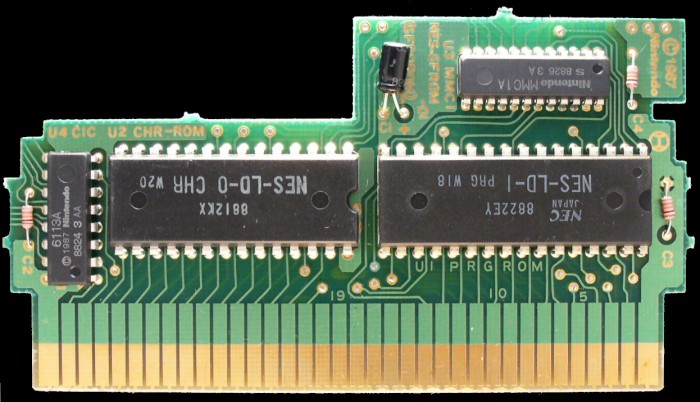

PCB Properties
| Name | NES-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8826 - 8947 (5) |
| Est First Run | June 1988 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-LD-1 PRG | 256 KB | 778AAF25 | 2 |
| CHR0 | NES-LD-0 CHR | 64 KB | E472EC23 | 5 |
| N/A | ROMs Combined | 320 KB | DAEE19F2 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8822 EY | 8822 | |
| U2 CHR-ROM | NEC | UPD23C512 | Mask ROM 64 KB | DIP-28 | 8812 KX | 8812 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8826 3 A | 8826 | |
| U4 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8824 3 AA | 8824 |
