Release Info
| Catalog ID | NES-KK-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1987 |
| Publisher | LJN |
| Developer | Atlus |
| Players | 2 |
| Peripherals | NES Controller |

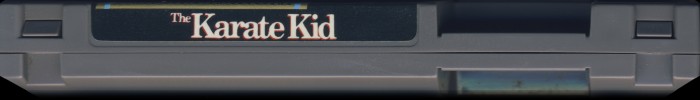

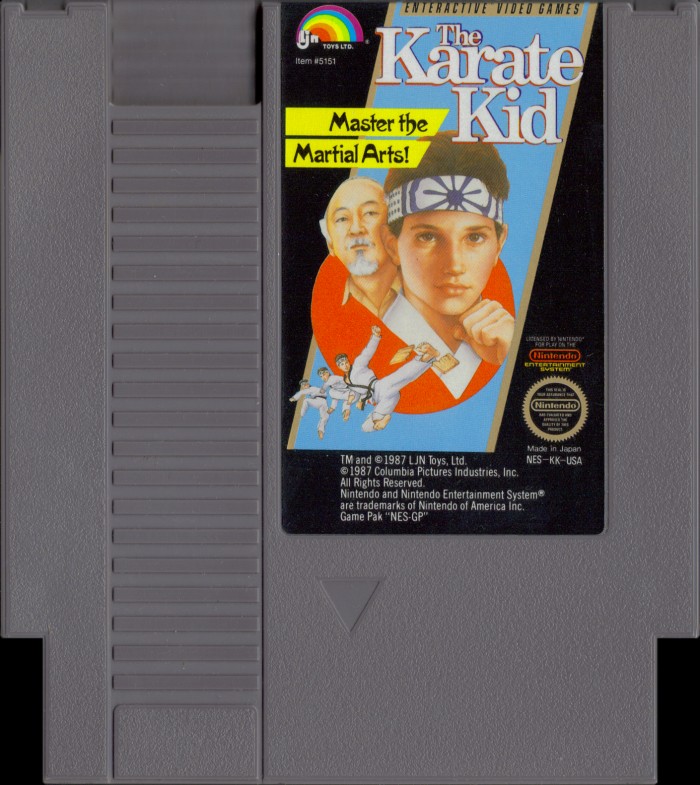

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KK-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 07 |

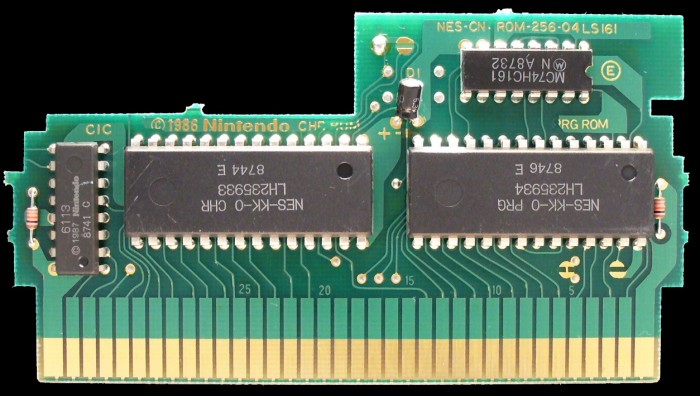

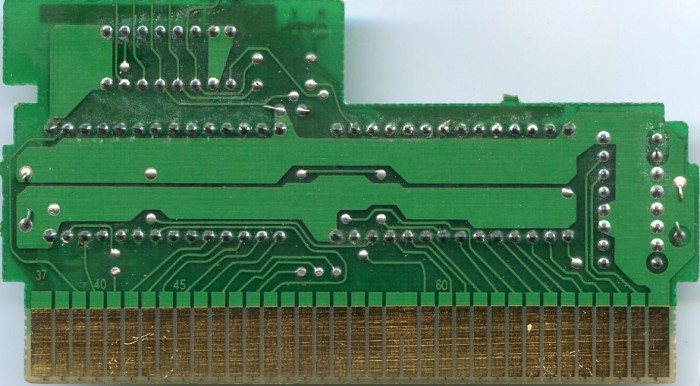

PCB Properties
| Name | NES-CN-ROM-256-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8746 - 8939 (3) |
| Est First Run | November 1987 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KK-0 PRG | 32 KB | 268D566D | 5 |
| CHR0 | NES-KK-0 CHR | 32 KB | 0031031B | 5 |
| N/A | ROMs Combined | 64 KB | 983948A5 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2359 34 | Mask ROM 32 KB | DIP-28 | 8746 E | 8746 | |
| CHR ROM | Sharp | LH2359 33 | Mask ROM 32 KB | DIP-28 | 8744 E | 8744 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8741 C | 8741 | |
| LS161 | Motorola | MC74HC161 | 74-161 Series | DIP-16 | 8732 N A | 8732 |
