Release Info
| Catalog ID | NES-3U-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1991 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

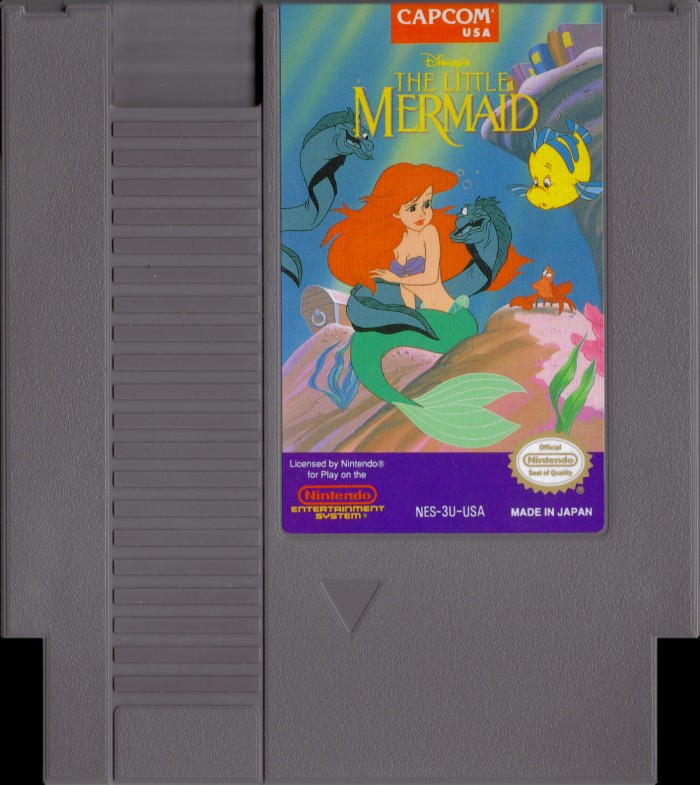

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-3U-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9127 - 9139 (2) |
| Est First Run | July 1991 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-3U-0 PRG | 128 KB | 3BE244EF | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP J567 | Mask ROM 128 KB | DIP-28 | 9127 EAI | 9127 | |
| U2 CHR RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0J 24Y | 9040 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 051 C | 9051 | |
| U4 HC161 | Motorola | MC74HC161A | 74-161 Series | DIP-16 | 9040 N A | 9040 | |
| U5 HC32 | Phillips | PC74HC32P | 74-32 Series | DIP-14 | 9035 Hnn | 9035 | 688490T |
