Release Info
| Catalog ID | NES-CP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1989 |
| Publisher | Data East |
| Developer | Sakata SAS |
| Players | 1 |
| Peripherals | NES Controller |

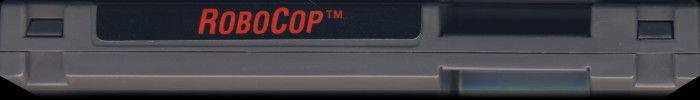

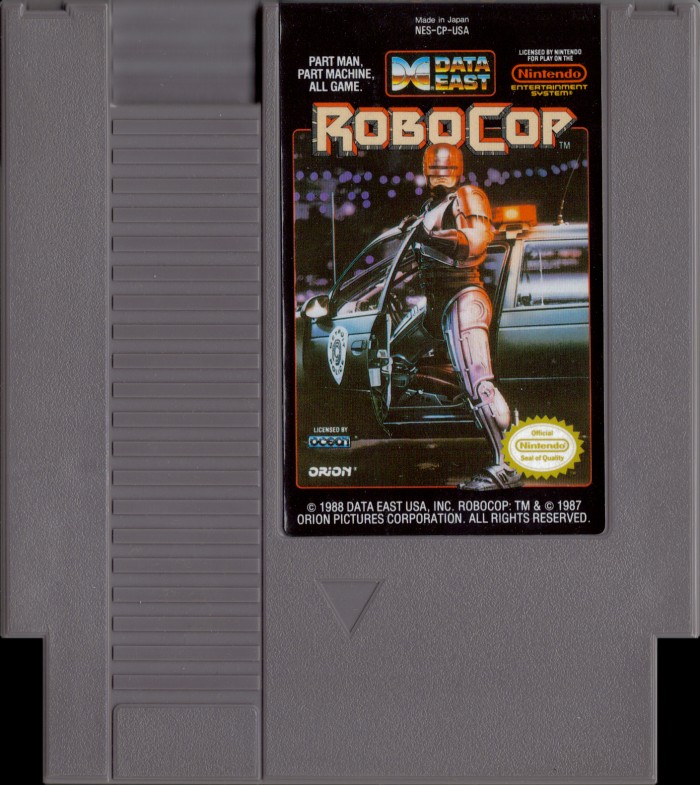

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CP-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

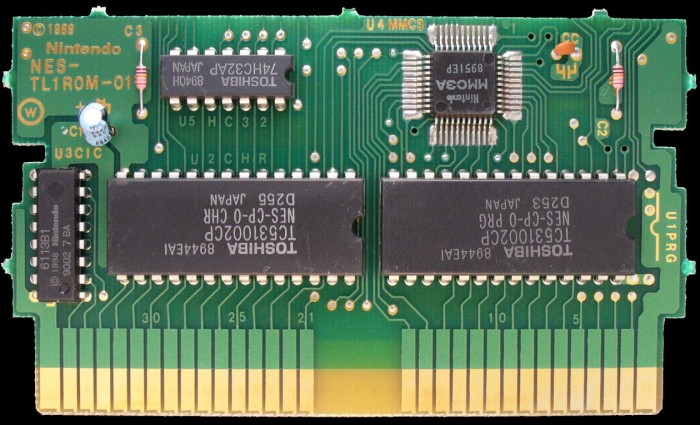

PCB Properties
| Name | NES-TL1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9002 - 9016 (3) |
| Est First Run | January 1990 |
| PCB Class | NES-TL1ROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-CP-0 PRG | 128 KB | 468DB9A0 | 5 |
| CHR0 | NES-CP-0 CHR | 128 KB | 1C682415 | 9 |
| N/A | ROMs Combined | 256 KB | 192D546F | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP D253 | Mask ROM 128 KB | DIP-28 | 8944 EAI | 8944 | |
| U2 CHR | Toshiba | TC531002CP D255 | Mask ROM 128 KB | DIP-28 | 8944 EAI | 8944 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9002 7 BA | 9002 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8951 EP | 8951 | |
| U5 HC32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 8940 H | 8940 |
