Release Info
| Catalog ID | NES-PL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1989 |
| Publisher | Activision |
| Developer | KLON |
| Players | 1 |
| Peripherals | NES Controller |

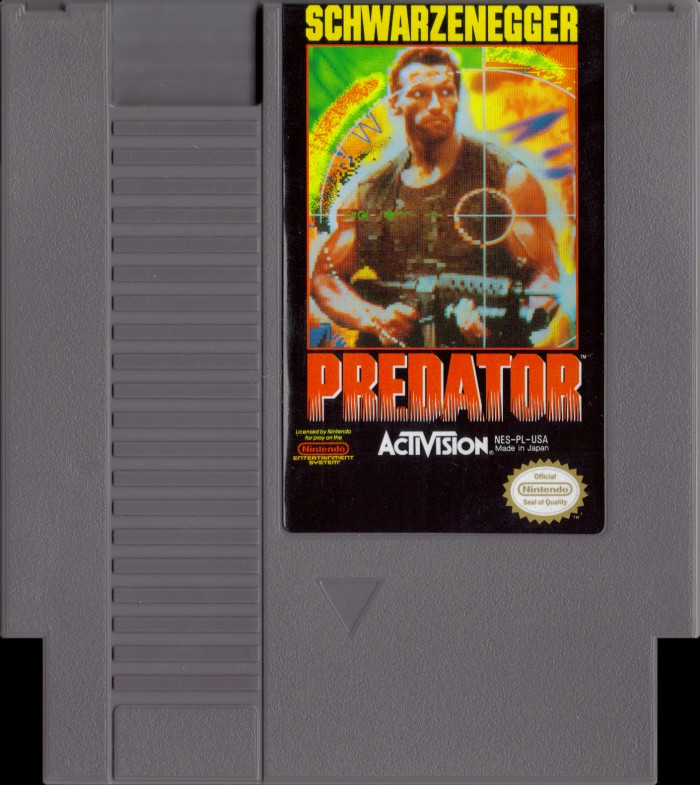

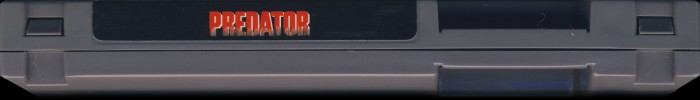

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PL-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 00 |

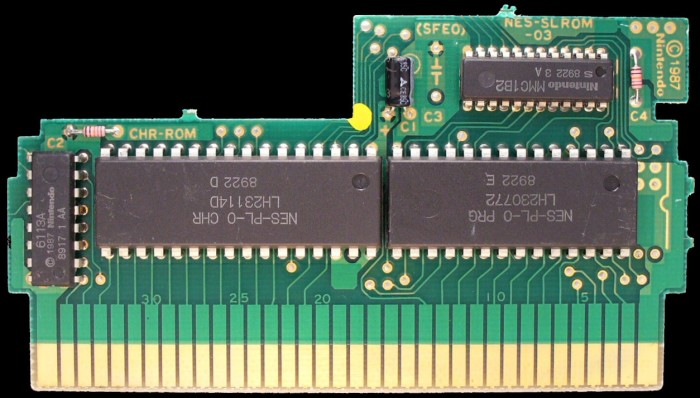

PCB Properties
| Name | NES-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8922 - 9014 (2) |
| Est First Run | June 1989 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-PL-0 PRG | 128 KB | 47ED7979 | 3 |
| CHR0 | NES-PL-0 CHR | 128 KB | E220308A | 3 |
| N/A | ROMs Combined | 256 KB | A7DE65E4 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2307 72 | Mask ROM 128 KB | DIP-28 | 8922 E | 8922 | ||
| CHR-ROM | Sharp | LH2311 4D | Mask ROM 128 KB | DIP-32 | 8922 D | 8922 | |
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8917 1 AA | 8917 | ||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8922 3 A | 8922 |
