Release Info
| Catalog ID | NES-PT-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

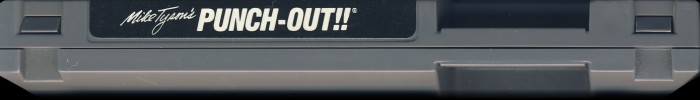

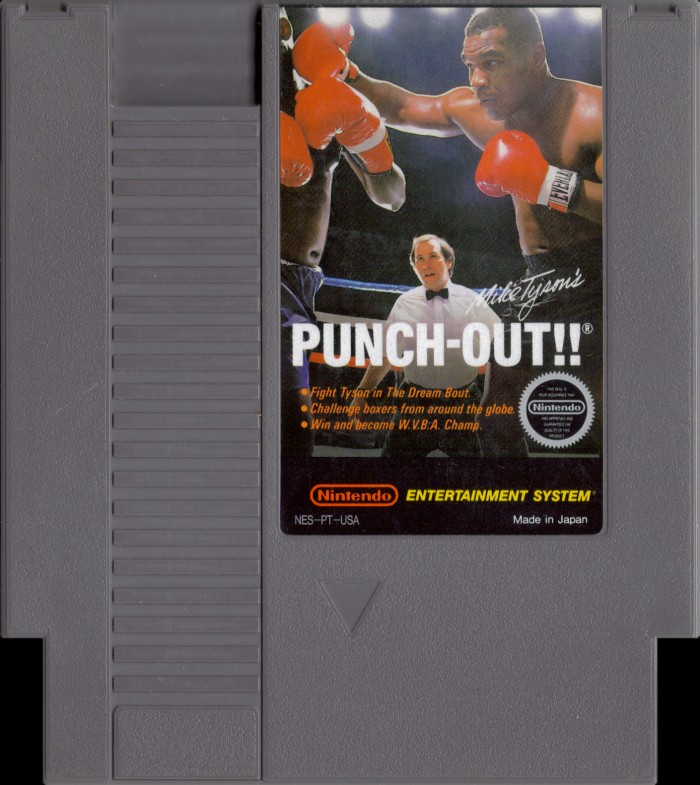

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PT-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 08 |

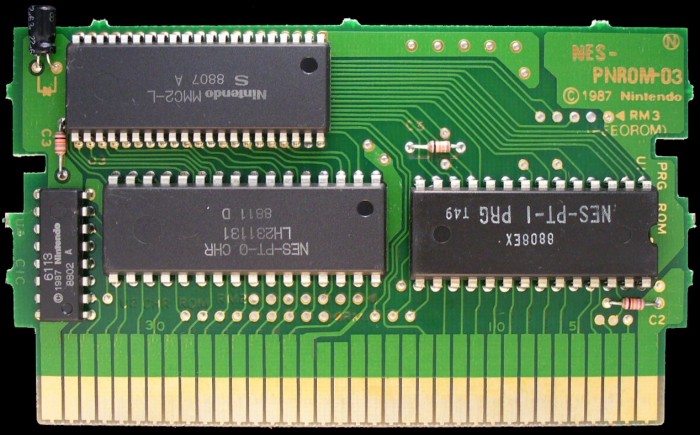

PCB Properties
| Name | NES-PNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8752 - 8812 (4) |
| Est First Run | December 1987 |
| PCB Class | NES-PNROM |
| iNES Mapper | 9 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | MMC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-PT-1 PRG | 128 KB | F1D861EF | 2 |
| CHR0 | NES-PT-0 CHR | 128 KB | 570B48EA | 10 |
| N/A | ROMs Combined | 256 KB | 2C818014 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8808 EX | 8808 | |
| U2 CHR ROM | Sharp | LH2311 31 | Mask ROM 128 KB | DIP-32 | 8811 D | 8811 | |
| U3 MMC2 | Sharp | MMC2-L | Nintendo MMC2 | DIP-42 | 8807 A | 8807 | |
| U4 CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8802 A | 8802 |
