Release Info
| Catalog ID | NES-YM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1992 |
| Publisher | Nintendo |
| Developer | Game Freak |
| Players | 2 |
| Peripherals | NES Controller |

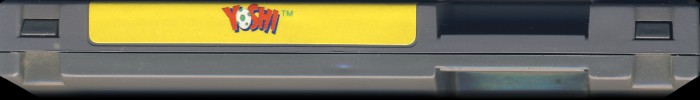

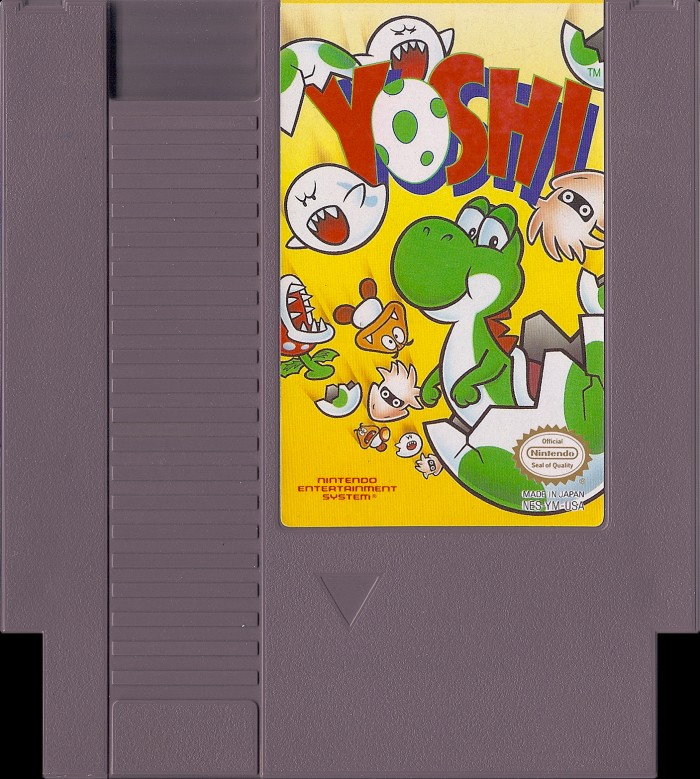

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-YM-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

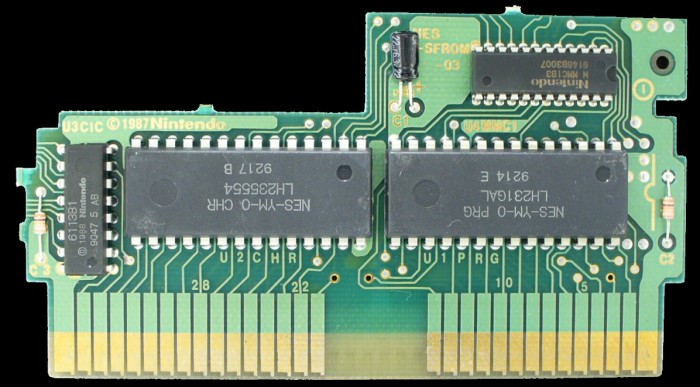

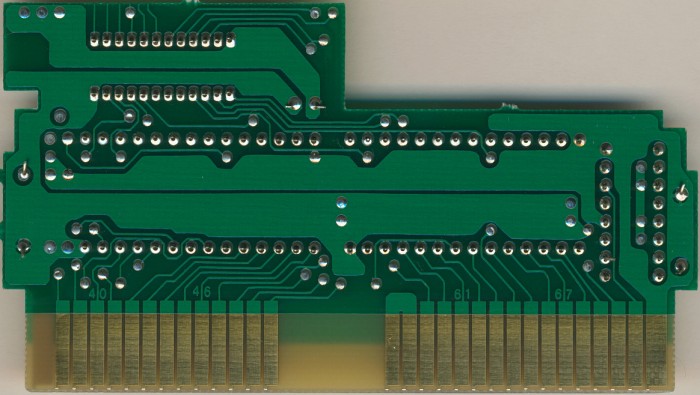

PCB Properties
| Name | NES-SFROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9217 |
| Est First Run | April 1992 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-YM-0 PRG | 128 KB | FE5F17F0 | 1 |
| CHR0 | NES-YM-0 CHR | 32 KB | 694C1999 | 1 |
| N/A | ROMs Combined | 160 KB | E7EAD93B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G AL | Mask ROM 128 KB | DIP-28 | 9214 E | 9214 | |
| U2 CHR | Sharp | LH2355 54 | Mask ROM 32 KB | DIP-28 | 9217 B | 9217 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9047 5 AB | 9047 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9146 B3007 | 9146 |
