Release Info
| Catalog ID | NES-5P-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1991 |
| Publisher | THQ |
| Developer | Equilibrium |
| Players | 1 |
| Peripherals | NES Controller |

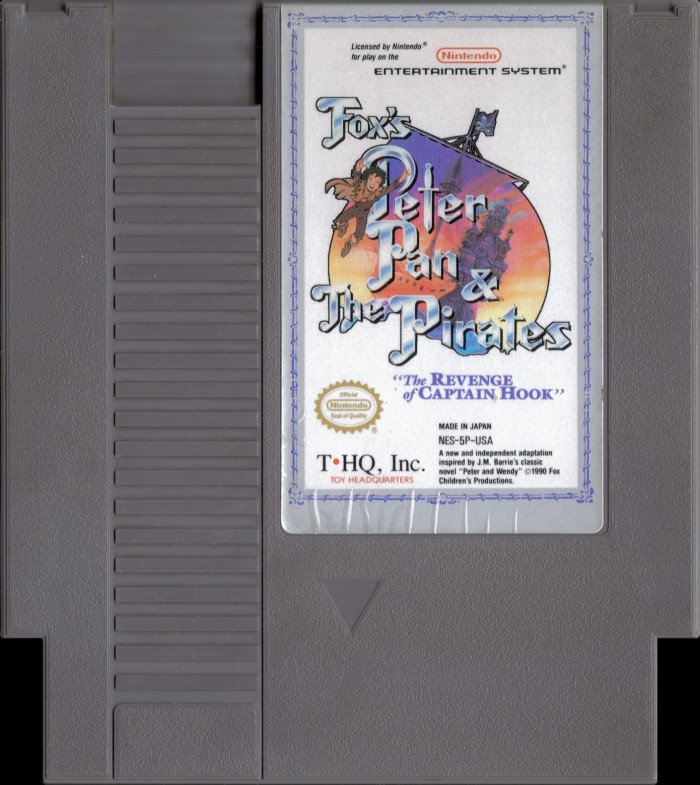

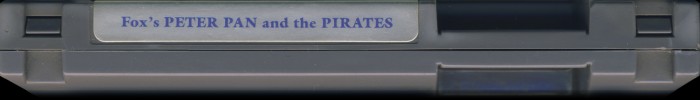

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-5P-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

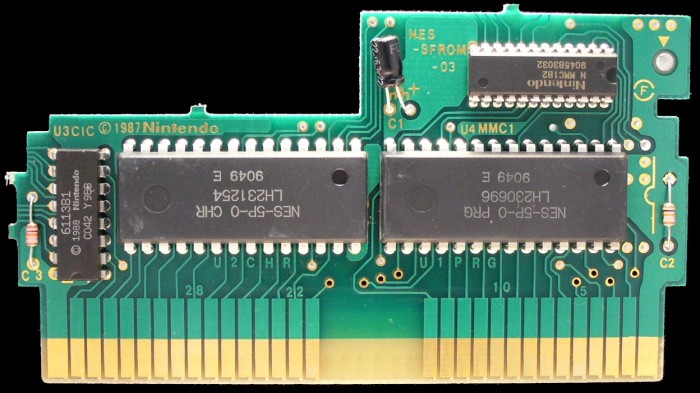

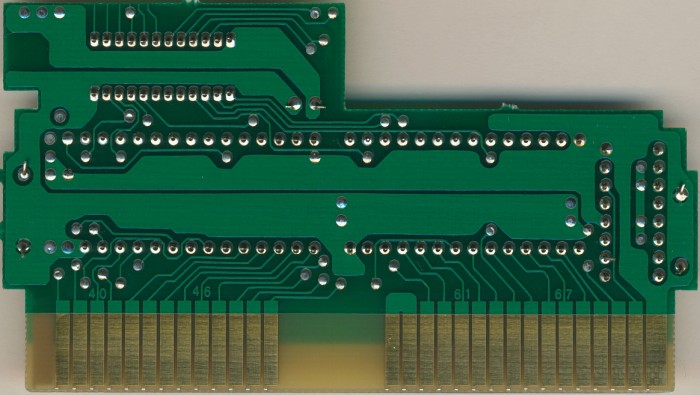

PCB Properties
| Name | NES-SFROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9049 |
| Est First Run | December 1990 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-5P-0 PRG | 128 KB | 84D51076 | 1 |
| CHR0 | NES-5P-0 CHR | 64 KB | 797D6CA4 | 1 |
| N/A | ROMs Combined | 192 KB | 20353E63 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 96 | Mask ROM 128 KB | DIP-28 | 9049 E | 9049 | |
| U2 CHR | Sharp | LH2312 54 | Mask ROM 64 KB | DIP-28 | 9049 E | 9049 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 042 C | 9042 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9045 B3032 | 9045 |
