Release Info
| Catalog ID | NES-ZT-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |

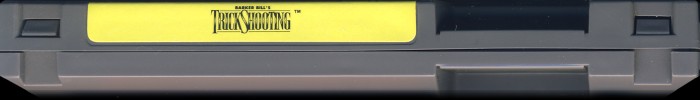

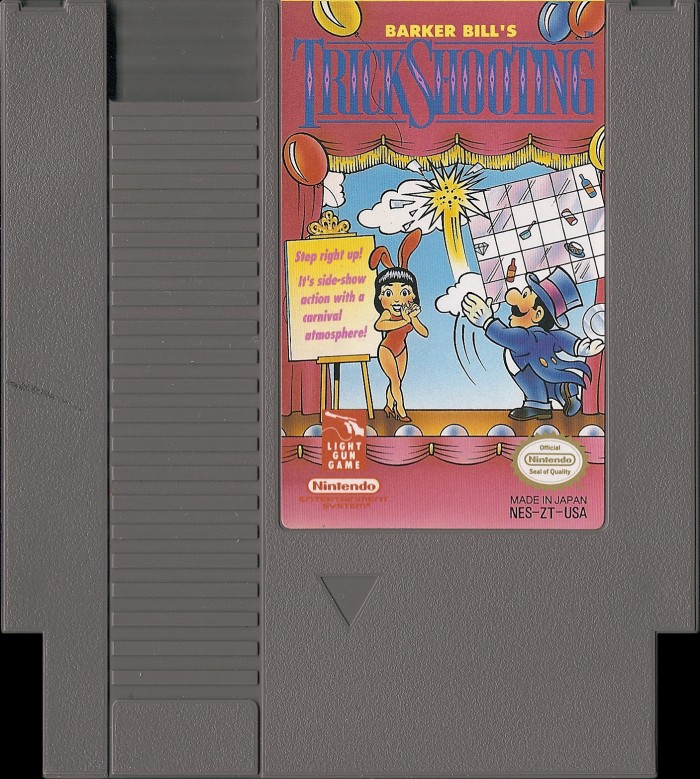

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZT-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

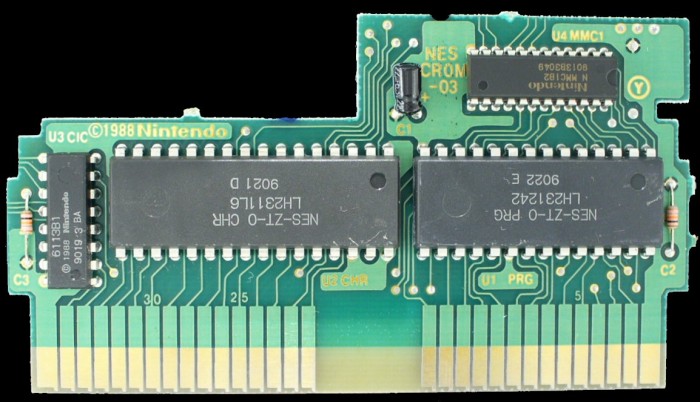

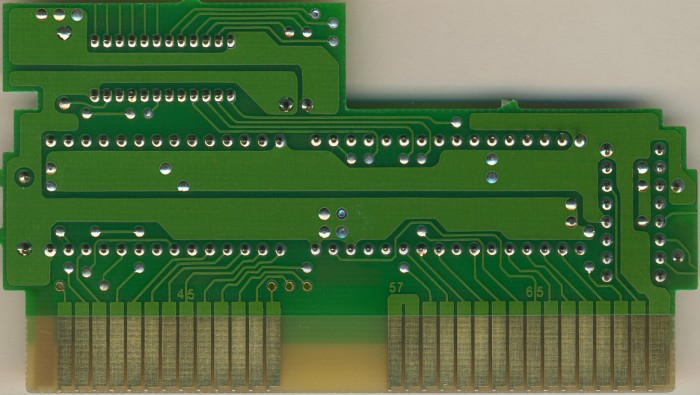

PCB Properties
| Name | NES-SCROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9022 |
| Est First Run | June 1990 |
| PCB Class | NES-SCROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-ZT-0 PRG | 64 KB | F2641AD0 | 1 |
| CHR0 | NES-ZT-0 CHR | 128 KB | A0A5A968 | 2 |
| N/A | ROMs Combined | 192 KB | 4318A2F8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2312 42 | Mask ROM 64 KB | DIP-28 | 9022 E | 9022 | |
| U2 CHR | Sharp | LH2311 L6 | Mask ROM 128 KB | DIP-32 | 9021 D | 9021 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9019 3 BA | 9019 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9013 B3049 | 9013 |
