Release Info
| Catalog ID | AVE-BJ |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1992 |
| Publisher | AVE |
| Developer | Odyssey Software |
| Players | 1 |
| Peripherals | NES Controller |

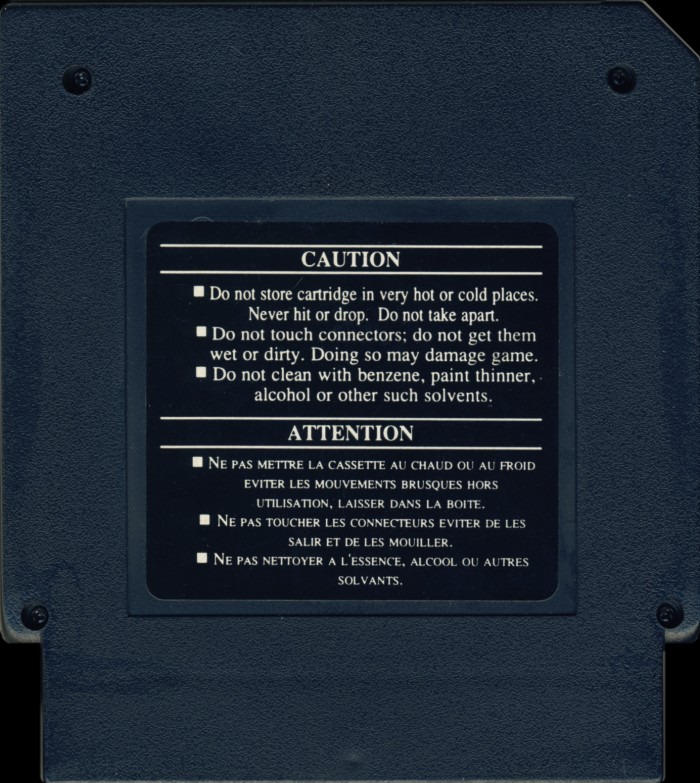

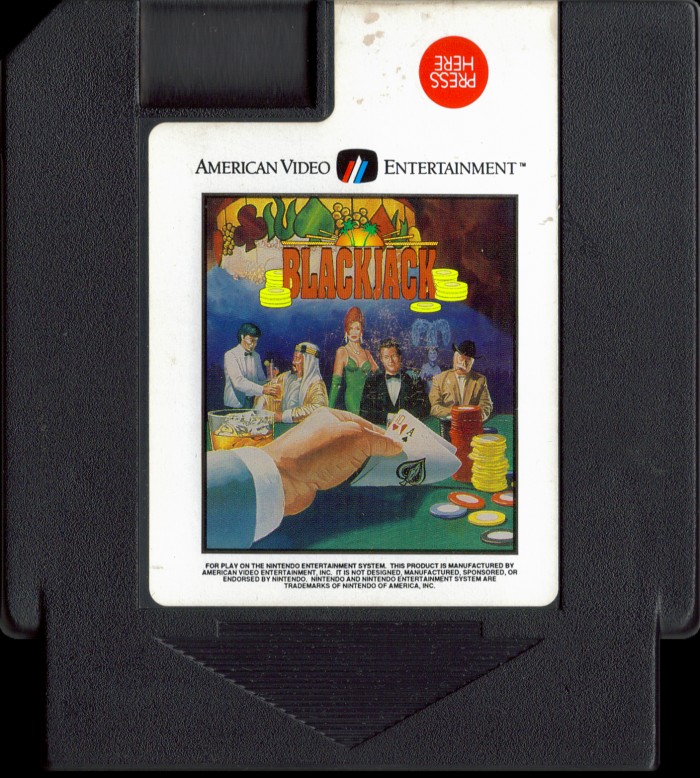

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Cut Corner |
| Embossed Text | None |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

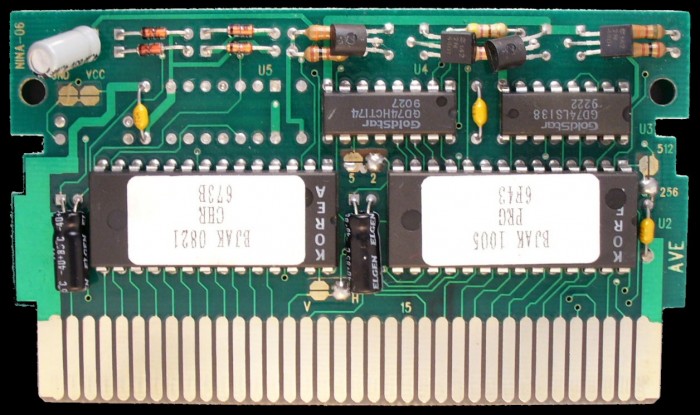

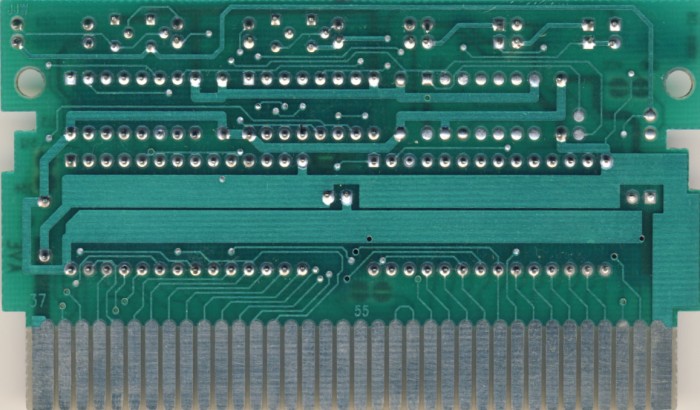

PCB Properties
| Name | NINA-06 |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9222 |
| Est First Run | June 1992 |
| PCB Class | AVE-NINA-06 |
| iNES Mapper | 79 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BJAK 1005 PRG 6F43 | 32 KB | 33CD1506 | 2 |
| CHR0 | BJAK 0821 CHR 673B | 32 KB | 90772101 | 2 |
| N/A | ROMs Combined | 64 KB | C2A4612E | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Signetics | 27C256-15 N | PROM 32 KB | DIP-28 | 9144 KL | 9144 | 2314803 |
| U2 | Signetics | 27C256-15 N | PROM 32 KB | DIP-28 | 9144 KL | 9144 | 2314803 |
| U3 | GoldStar | GD74LS138 | 74-138 Series | DIP-16 | 9222 | 9222 | |
| U4 | GoldStar | GD74HCT174 | 74-174 Series | DIP-16 | 9027 | 9027 |
