Release Info
| Catalog ID | NES-TL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1989 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 2 |
| Peripherals | NES Controller |

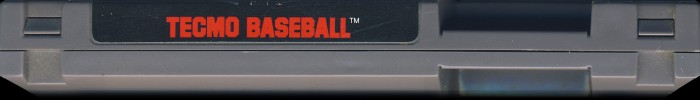

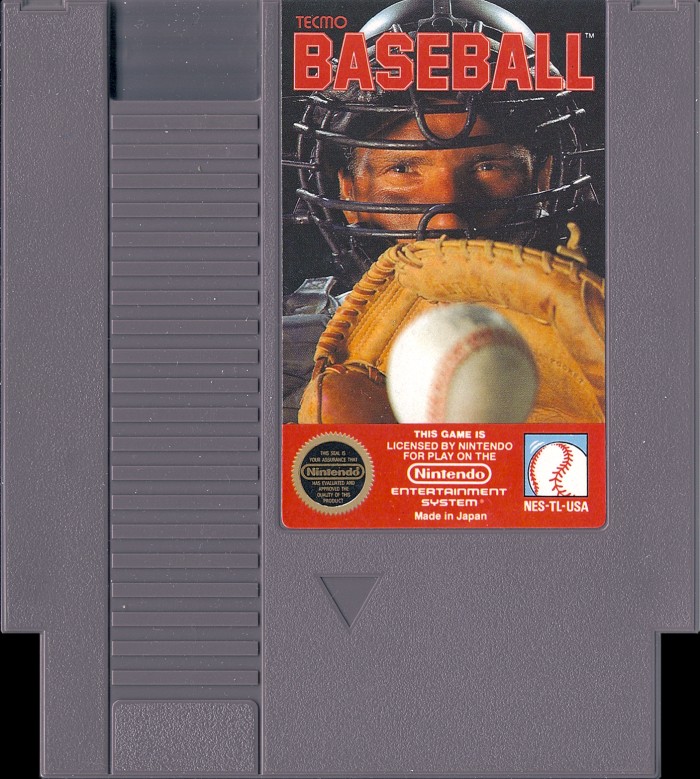

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-TL-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-SGROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8852 - 8924 (2) |
| Est First Run | December 1988 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-TL-0 PRG | 128 KB | AD12A34F | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG-ROM | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8849 KX | 8849 | |
| IC2 CHR-RAM | Toshiba | TC5563APL-15 | SRAM 8 KB | SDIP-28 | 8847 HCK | 8847 | |
| IC3 MMC | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8852 1 A | 8852 | |
| IC4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8847 5 B | 8847 |
