Release Info
| Catalog ID | NES-GR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

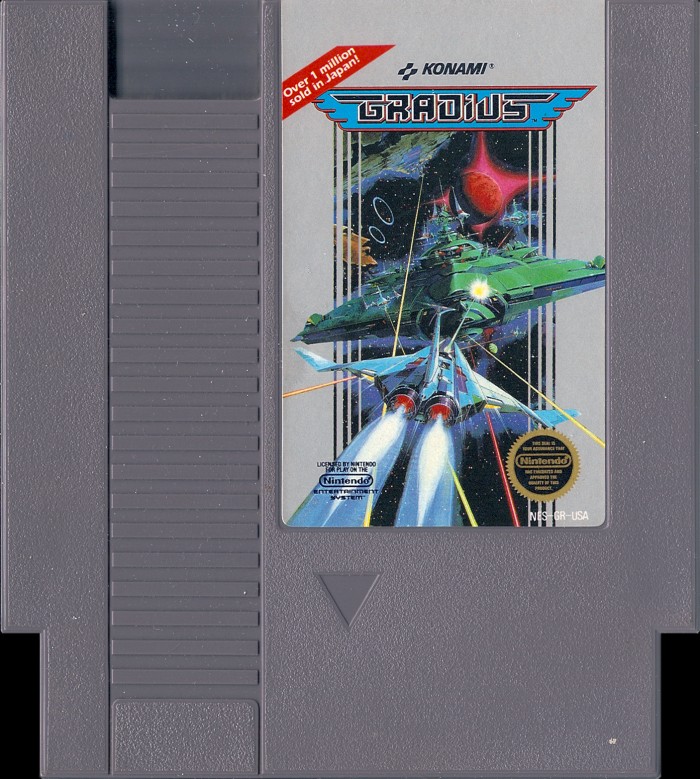

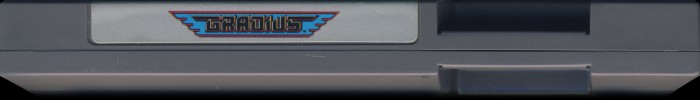

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GR-USA |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-CN-ROM-256-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8719 - 8931 (2) |
| Est First Run | May 1987 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-GR-0 PRG | 32 KB | 2FB0FF59 | 4 |
| CHR0 | NES-GR-0 CHR | 32 KB | 0DDDD32E | 9 |
| N/A | ROMs Combined | 64 KB | 350D835E | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
