Release Info
| Catalog ID | NES-ZS-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1989 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 4 |
| Peripherals | NES Controller,Zapper Light Gun |

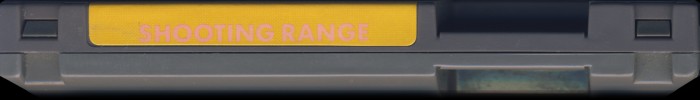

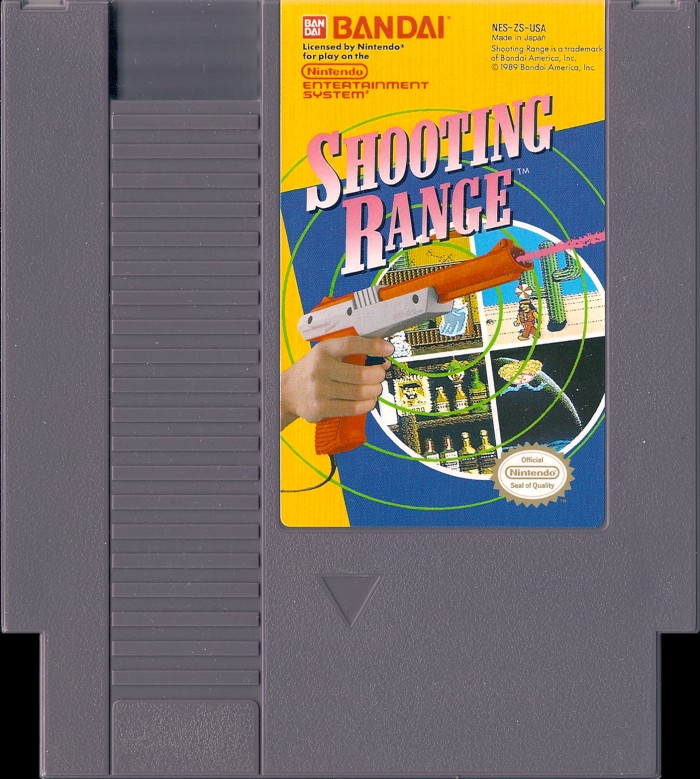

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZS-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8923 |
| Est First Run | June 1989 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-ZS-0 PRG | 32 KB | 885A8A6D | 1 |
| CHR0 | NES-ZS-0 CHR | 32 KB | BF24AE29 | 1 |
| N/A | ROMs Combined | 64 KB | 851EB9BE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2812 | Mask ROM 32 KB | DIP-28 | 9D4 13 | 8917 | |
| CHR ROM | Ricoh | RP23256E 2813 | Mask ROM 32 KB | DIP-28 | 9E4 25 | 8921 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8923 3 BA | 8923 | |
| LS161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 851 EN | 8851 |
