Release Info
| Catalog ID | CDR-RD-81003 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | Color Dreams |
| Developer | Color Dreams |
| Players | 1 |
| Peripherals | NES Controller |

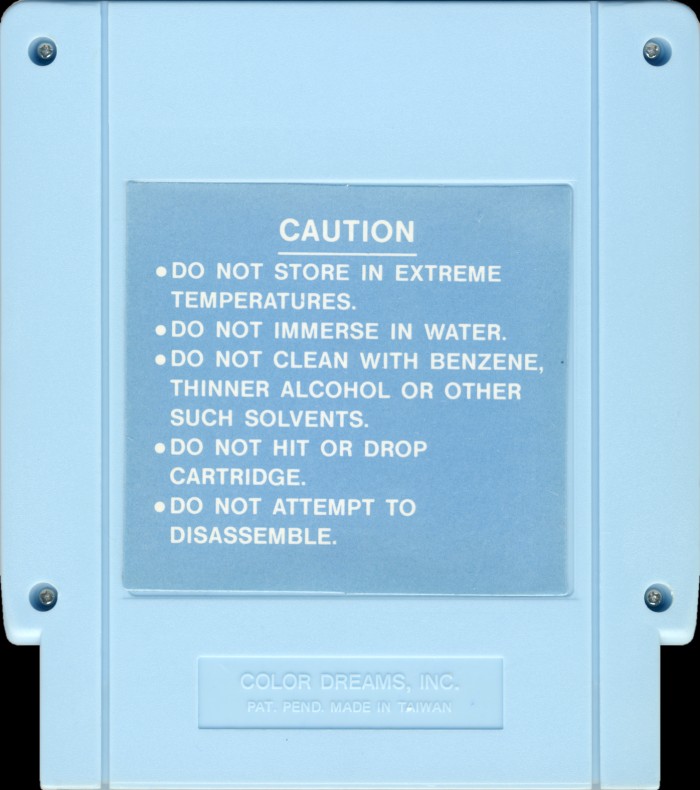

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Blue |
| Form Factor | Protruding Grip |
| Embossed Text | Color Dreams, Inc. Pat. Pend. Made in Taiwan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

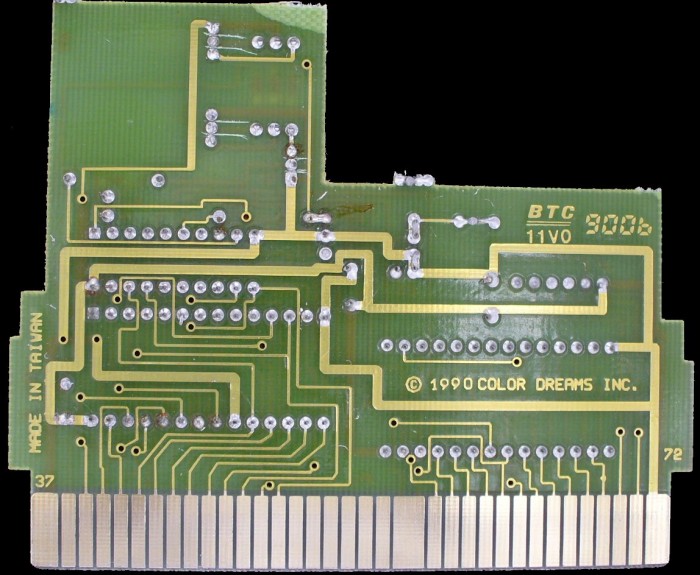

PCB Properties
| Name | UNK-COLORDREAMS-REVA |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9001 |
| Est First Run | January 1990 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 64 KB | 8B5C74DB | 1 |
| CHR0 | Not Present | 32 KB | 421ADB54 | 1 |
| N/A | ROMs Combined | 96 KB | 61253D1C | 1 |

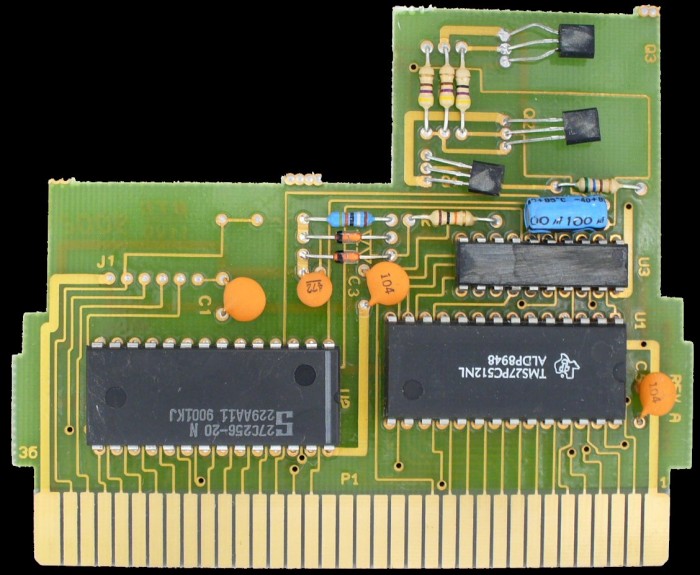

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Texas Instruments | TMS27PC512NL | PROM 64 KB | DIP-28 | 8948 ALDP | 8948 | |
| U2 | Signetics | 27C256-20 N | PROM 32 KB | DIP-28 | 9001 KJ | 9001 | 229AA11 |
| U3 | __Unknown | 74LS377N | 74-377 Series | DIP-20 |
