Release Info
| Catalog ID | NES-W7-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1992 |
| Publisher | Atlus |
| Developer | Graphic Research |
| Players | 1 |
| Peripherals | NES Controller |

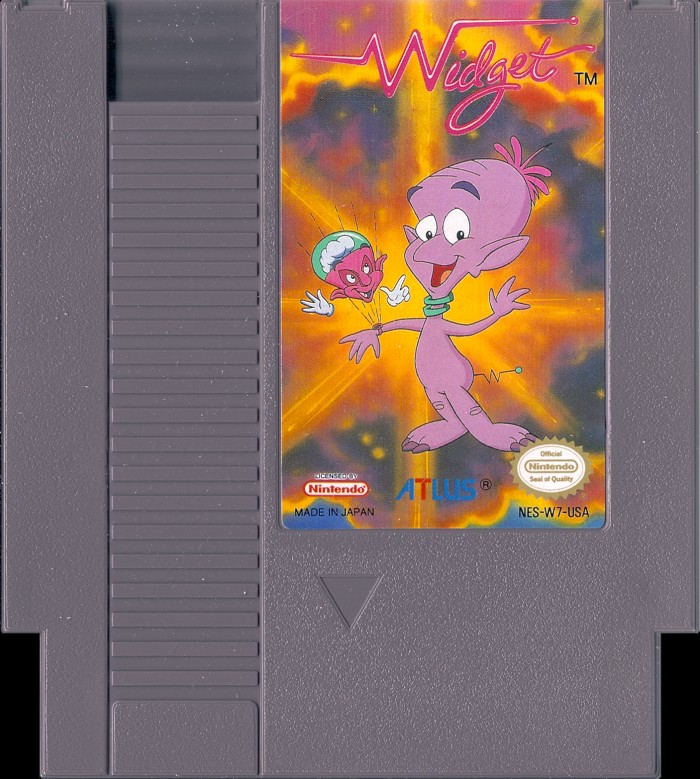

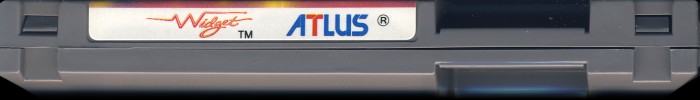

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-W7-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

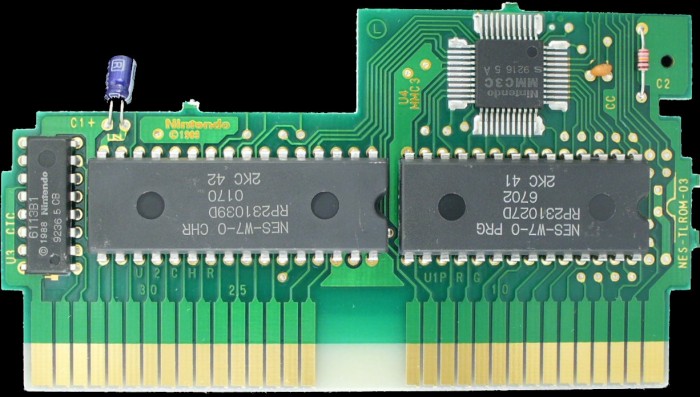

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9240 |
| Est First Run | October 1992 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-W7-0 PRG | 128 KB | FA839DC9 | 1 |
| CHR0 | NES-W7-0 CHR | 128 KB | D45652C0 | 1 |
| N/A | ROMs Combined | 256 KB | E7C981A2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6702 | Mask ROM 128 KB | DIP-28 | 2KC 41 | 9240 | |
| U2 CHR | Ricoh | RP231039D 0170 | Mask ROM 128 KB | DIP-32 | 2KC 42 | 9240 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9236 5 CB | 9236 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9216 5 A | 9216 |
