Release Info
| Catalog ID | NES-RK-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1987 |
| Publisher | Data East |
| Developer | Woodplace |
| Players | 1 |
| Peripherals | NES Controller |

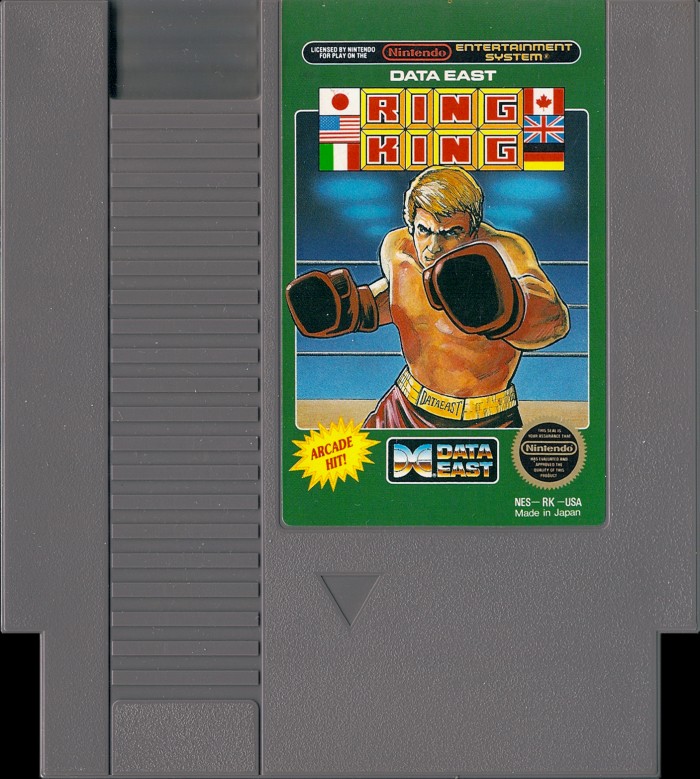

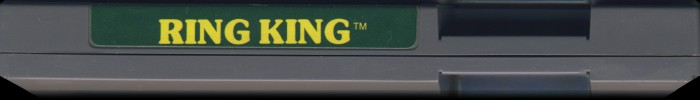

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RK-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 12 |

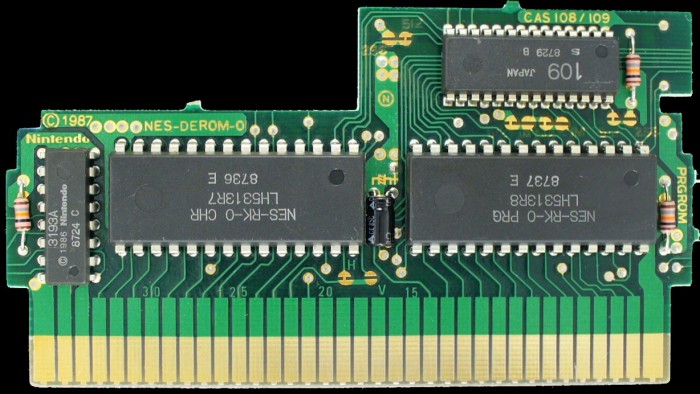

PCB Properties
| Name | NES-DEROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8737 - 8823 (2) |
| Est First Run | September 1987 |
| PCB Class | NES-DEROM |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-RK-0 PRG | 64 KB | 4EBE8A31 | 3 |
| CHR0 | NES-RK-0 CHR | 64 KB | C91FA9C9 | 3 |
| N/A | ROMs Combined | 128 KB | 5BB62688 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH5313 R8 | Mask ROM 64 KB | DIP-28 | 8737 E | 8737 | |
| CHR ROM | Sharp | LH5313 R7 | Mask ROM 64 KB | DIP-28 | 8736 E | 8736 | |
| CIC | Sharp | 3193A | Nintendo CIC | DIP-16 | 8724 C | 8724 | |
| CAS 108/109 | Sharp | 109 | Namcot 109 | DIP-28 | 8729 B | 8729 |
