Release Info
| Catalog ID | NES-IV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1989 |
| Publisher | Ultra Games |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

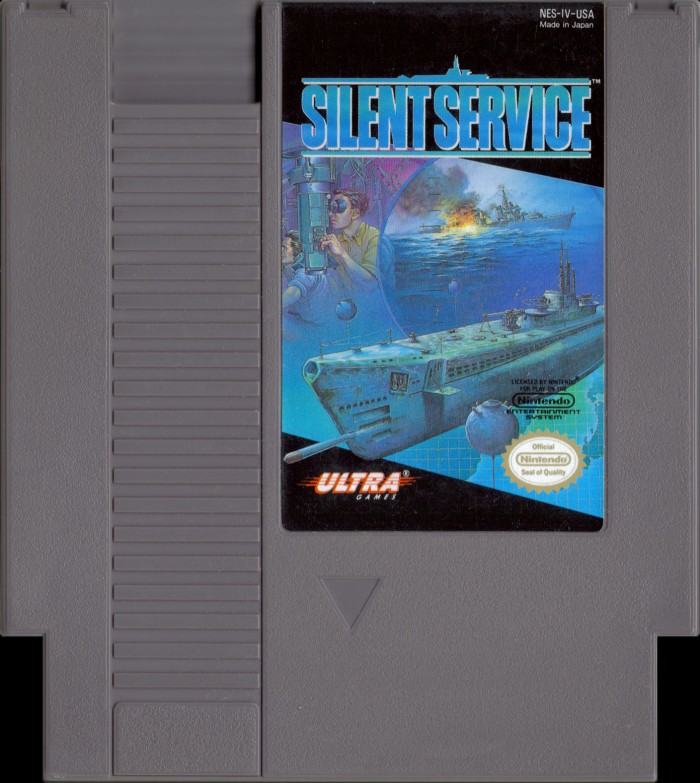

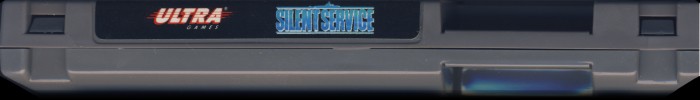

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IV-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 24 |
PCB Properties
| Name | 351258 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8949 - 9005 (3) |
| Est First Run | December 1989 |
| PCB Class | KONAMI-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SKH-040030-IV | 128 KB | 5E767671 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | 231026E 6301 | Mask ROM 128 KB | DIP-28 | 9H4 E9 | 8935 | ||
| Seiko-Epson | SRM2064C15 | SRAM 8 KB | DIP-28 | 95 F | 8918 | ||
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8949 5 CA | 8949 | ||
| Phillips | PC74HC161P | 74-161 Series | DIP-16 | 8931 HnS | 8931 | 654630T | |
| Phillips | PC74HC32P | 74-32 Series | DIP-14 | 8927 HSS | 8927 | 645330T |
