Release Info
| Catalog ID | NES-JH-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1989 |
| Publisher | Bandai |
| Developer | Advance Communication |
| Players | 1 |
| Peripherals | NES Controller |

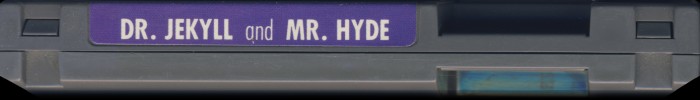

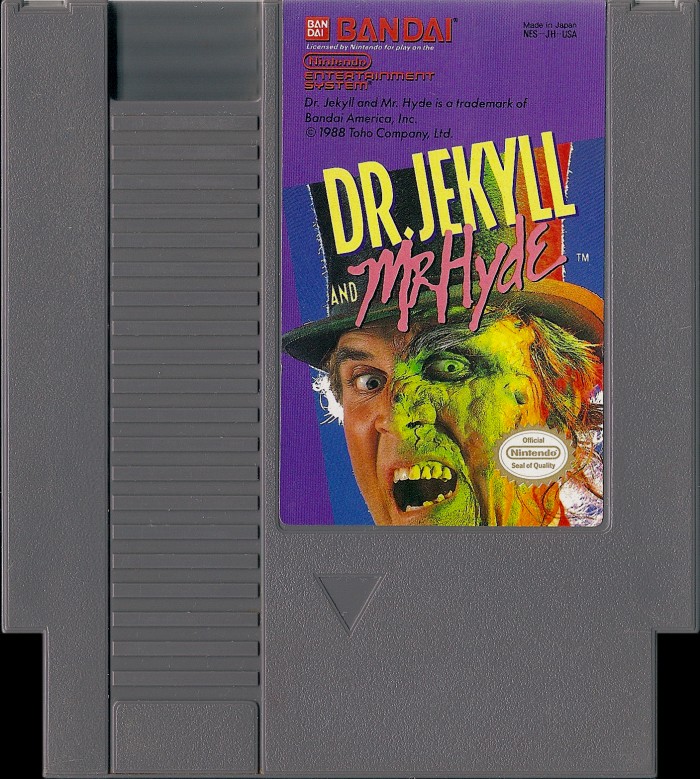

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-JH-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 12 |

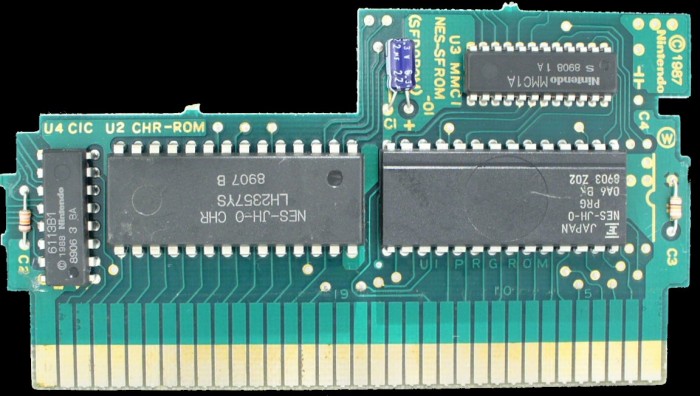

PCB Properties
| Name | NES-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8908 |
| Est First Run | February 1989 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-JH-0 PRG | 128 KB | 5E33B189 | 1 |
| CHR0 | NES-JH-0 CHR | 32 KB | CC352649 | 1 |
| N/A | ROMs Combined | 160 KB | 4D3FBA78 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8903 Z02 | 8903 | |
| U2 CHR-ROM | Sharp | LH2357 YS | Mask ROM 32 KB | DIP-28 | 8907 B | 8907 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8908 1 A | 8908 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8906 3 BA | 8906 |
