Release Info
| Catalog ID | NES-FC-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1992 |
| Publisher | Hudson Soft |
| Developer | Shimada Kikaku |
| Players | 1 |
| Peripherals | NES Controller |

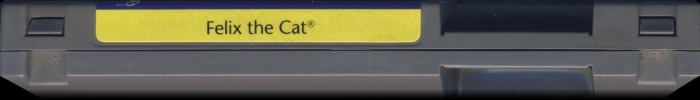

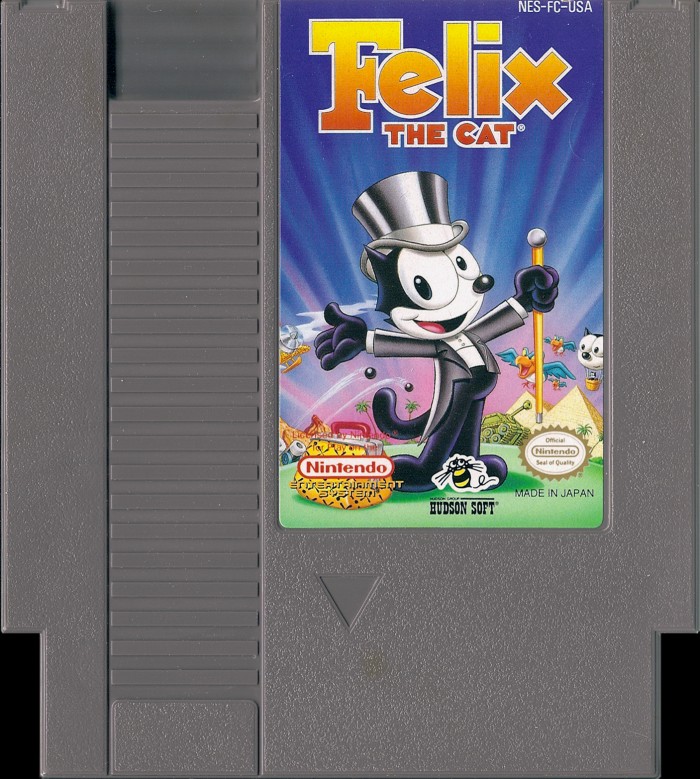

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FC-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

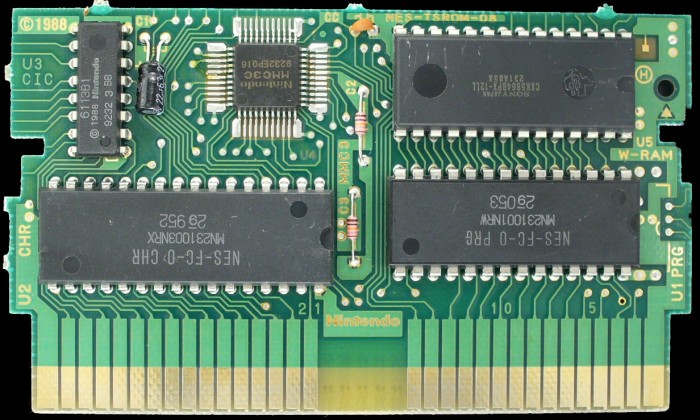

PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9237 |
| Est First Run | September 1992 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-FC-0 PRG | 128 KB | F7E84558 | 2 |
| CHR0 | NES-FC-0 CHR | 128 KB | 60171742 | 3 |
| N/A | ROMs Combined | 256 KB | 2CAAE01C | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NRW | Mask ROM 128 KB | DIP-28 | 2 53 | 9236 | |
| U2 CHR | Panasonic | MN231003 NRX | Mask ROM 128 KB | DIP-32 | 2 52 | 9237 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9232 3 BB | 9232 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9232 EP016 | 9232 | |
| U5 W-RAM | Sony | CXK5864BPX-12LL | SRAM 8 KB | DIP-28 | 231 A85X | 9231 |
