Release Info
| Catalog ID | NES-CN-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1988 |
| Publisher | Data East |
| Developer | Data East |
| Players | 1 |
| Peripherals | NES Controller |

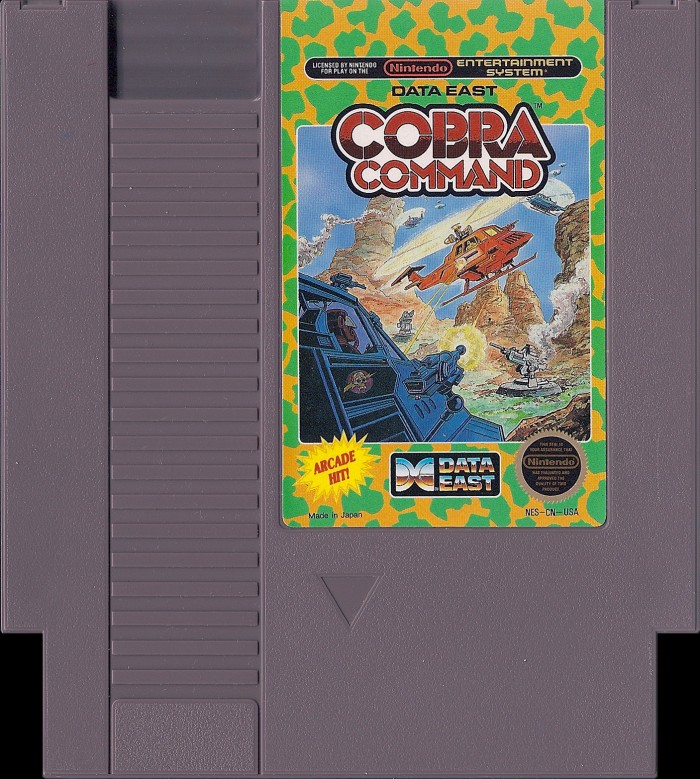

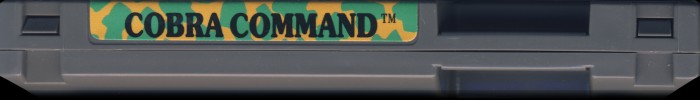

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CN-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 08 |

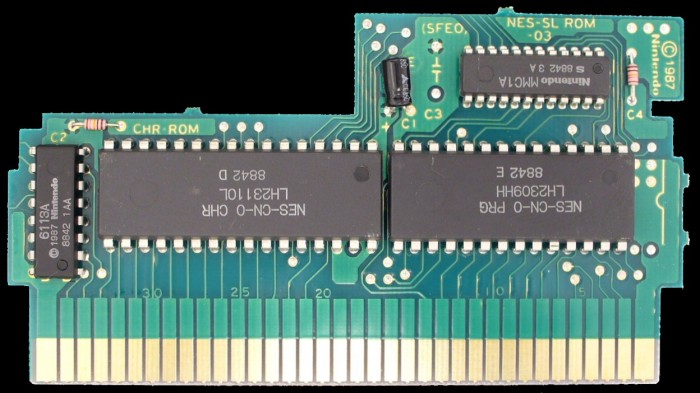

PCB Properties
| Name | NES-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8842 - 8843 (2) |
| Est First Run | October 1988 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-CN-0 PRG | 128 KB | 94CCBBBC | 2 |
| CHR0 | NES-CN-0 CHR | 128 KB | 4B026840 | 2 |
| N/A | ROMs Combined | 256 KB | 2D75C7A9 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2309 HH | Mask ROM 128 KB | DIP-28 | 8842 E | 8842 | ||
| CHR-ROM | Sharp | LH2311 0L | Mask ROM 128 KB | DIP-32 | 8842 D | 8842 | |
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8842 1 AA | 8842 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8842 3 A | 8842 |
