Release Info
| Catalog ID | NES-KV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1988 |
| Publisher | Data East |
| Developer | Data East |
| Players | 1 |
| Peripherals | NES Controller |

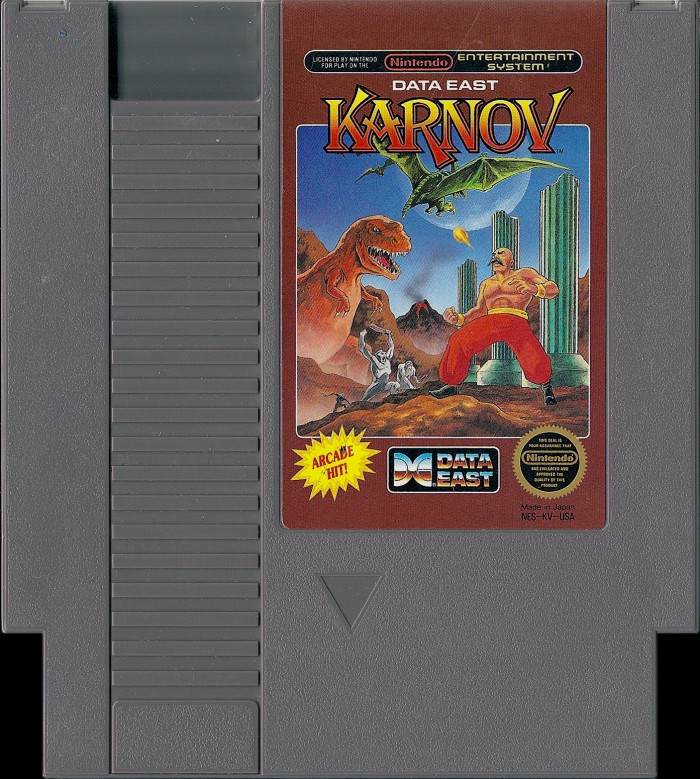

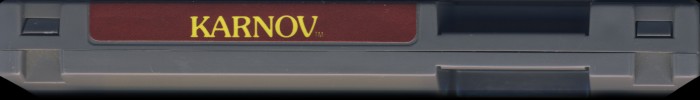

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KV-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 00 |

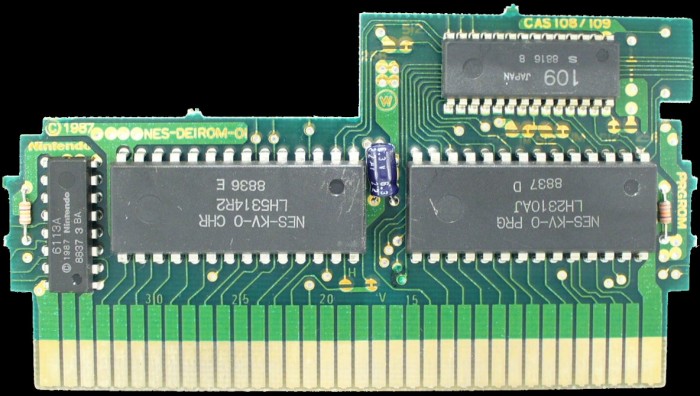

PCB Properties
| Name | NES-DE1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8837 |
| Est First Run | September 1988 |
| PCB Class | NES-DE1ROM |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KV-0 PRG | 128 KB | A37B0EE3 | 1 |
| CHR0 | NES-KV-0 CHR | 64 KB | 265A2A46 | 1 |
| N/A | ROMs Combined | 192 KB | 548A2C3C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2310 AJ | Mask ROM 128 KB | DIP-28 | 8837 D | 8837 | |
| Sharp | LH5314 R2 | Mask ROM 64 KB | DIP-28 | 8836 E | 8836 | ||
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8837 3 BA | 8837 | ||
| CAS 108/109 | Sharp | 109 | Namcot 109 | DIP-28 | 8816 B | 8816 |
