Release Info
| Catalog ID | TGN-002-TT |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | Tengen |
| Developer | Tengen |
| Players | 2 |
| Peripherals | NES Controller |

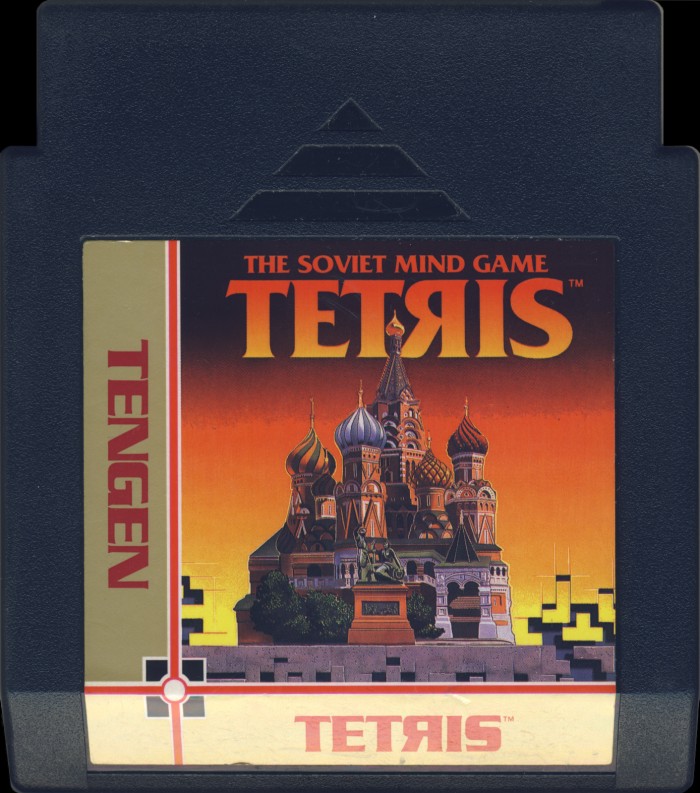

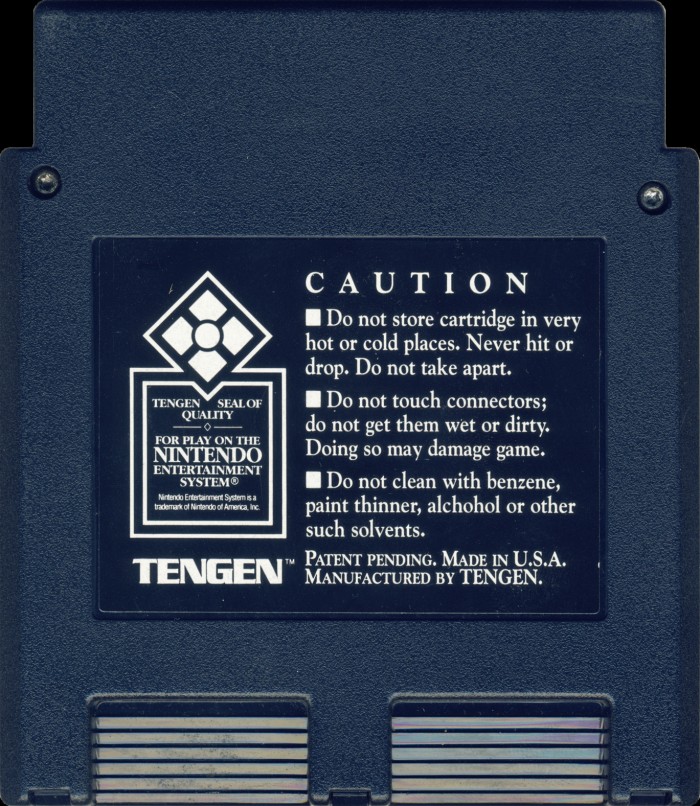

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

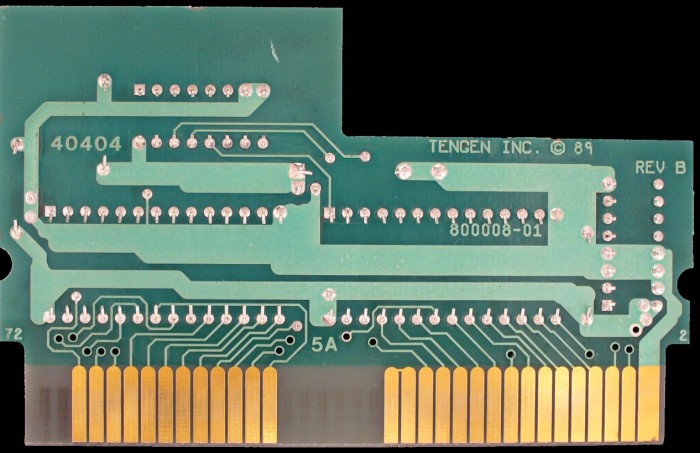

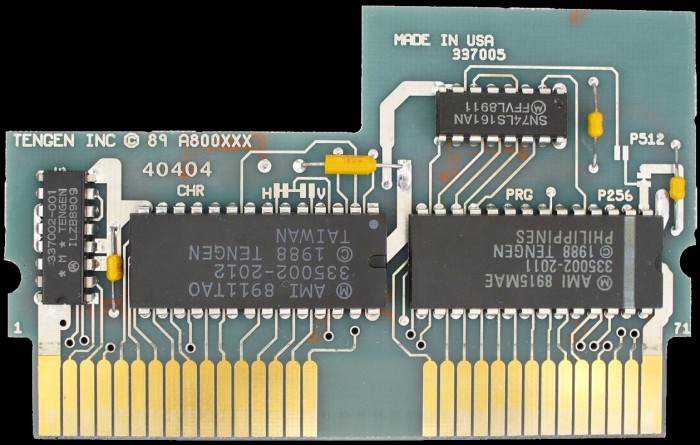

PCB Properties
| Name | 800008-01 REV B |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 8915 |
| Est First Run | April 1989 |
| PCB Class | TENGEN-800008 |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337002 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335002-2011 | 32 KB | A520F44C | 2 |
| CHR0 | 335002-2012 | 16 KB | 68F18CBE | 2 |
| N/A | ROMs Combined | 48 KB | 343C7BB0 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | AMI | AM23256 | Mask ROM 32 KB | DIP-28 | 8915 MAE | 8915 | |
| CHR | AMI | AM23128 | Mask ROM 16 KB | DIP-28 | 8911 TAO | 8911 | |
| 337002 | Motorola | 337002-001 | Tengen CIC | DIP-16 | 8909 ILZB | 8909 | |
| 337005 | Motorola | SN74LS161AN | 74-161 Series | DIP-16 | 8911 FFVL | 8911 |
