Release Info
| Catalog ID | NES-WP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1990 |
| Publisher | Acclaim |
| Developer | Interplay |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

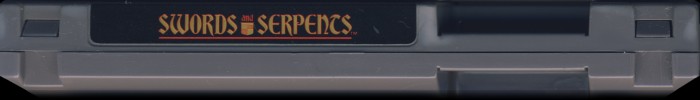

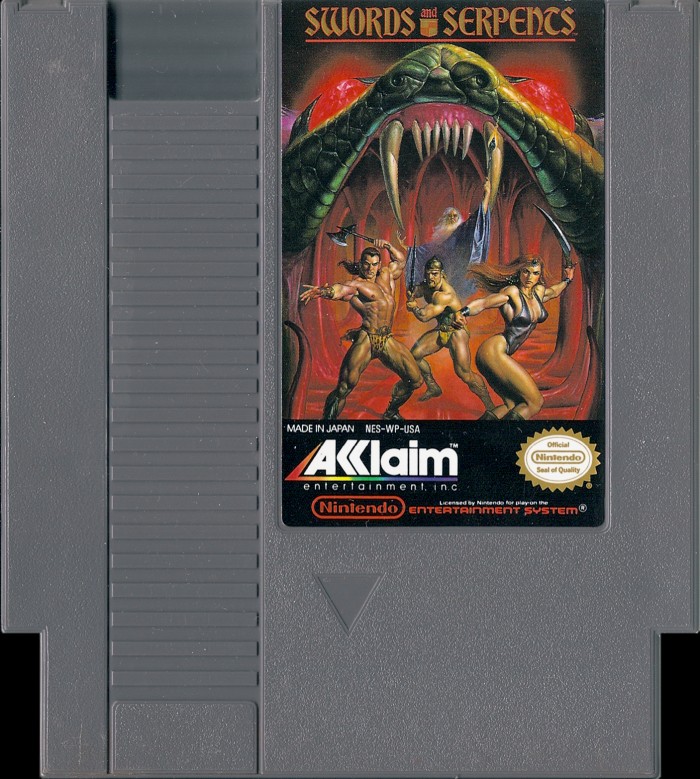

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WP-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 05 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9030 |
| Est First Run | July 1990 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-WP-0 PRG | 128 KB | 3417EC46 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NTB | Mask ROM 128 KB | DIP-28 | 0 B3 | 9030 | |
| U2 CHR RAM | Sharp | LH5160F-10L | SRAM 8 KB | DIP-28 | 9026 1 SB | 9026 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9028 3 AA | 9028 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9017 | 9017 | |
| U5 HC32 | Motorola | MC74HC32A | 74-32 Series | DIP-14 | 9009 N A | 9009 |
