Release Info
| Catalog ID | NES-48-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1991 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

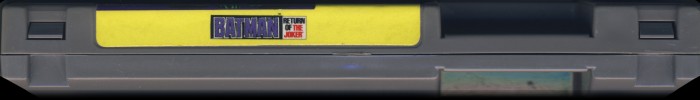

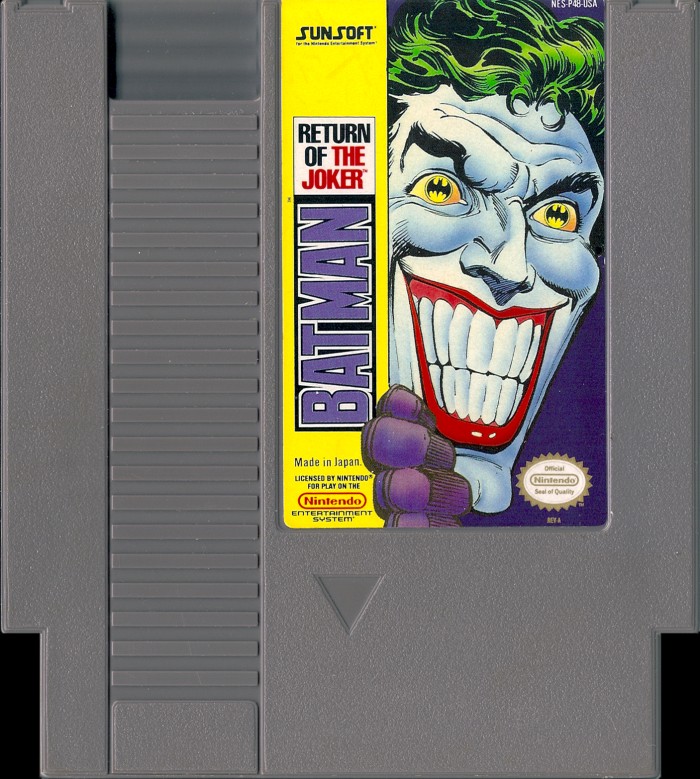

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-P48-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code |

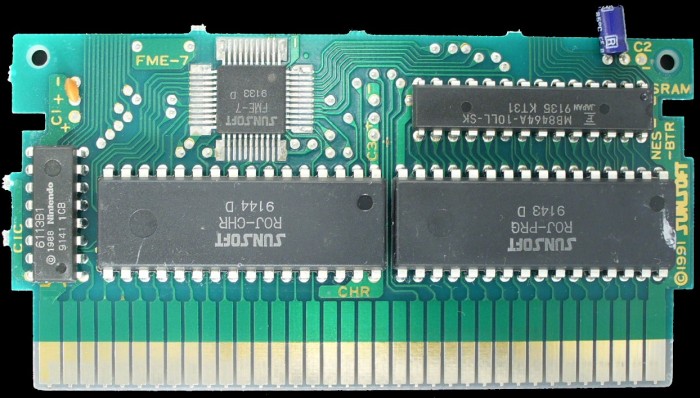

PCB Properties
| Name | NES-BTR |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 9144 |
| Est First Run | November 1991 |
| PCB Class | NES-BTR |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | FME-7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ROJ-PRG | 128 KB | AD28AEF6 | 2 |
| CHR0 | ROJ-CHR | 256 KB | 176FCB71 | 1 |
| N/A | ROMs Combined | 384 KB | 03EC46AF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9143 D | 9143 | |
| CHR | Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9144 D | 9144 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9141 1 CB | 9141 | |
| FME-7 | Sharp | FME-7 | Sunsoft FME-7 | TQFP-44 | 9133 D | 9133 | |
| SRAM | Fujitsu | MB8464A-10LL-SK | SRAM 8 KB | SDIP-28 | 9135 KT31 | 9135 |
