Release Info
| Catalog ID | NES-QP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

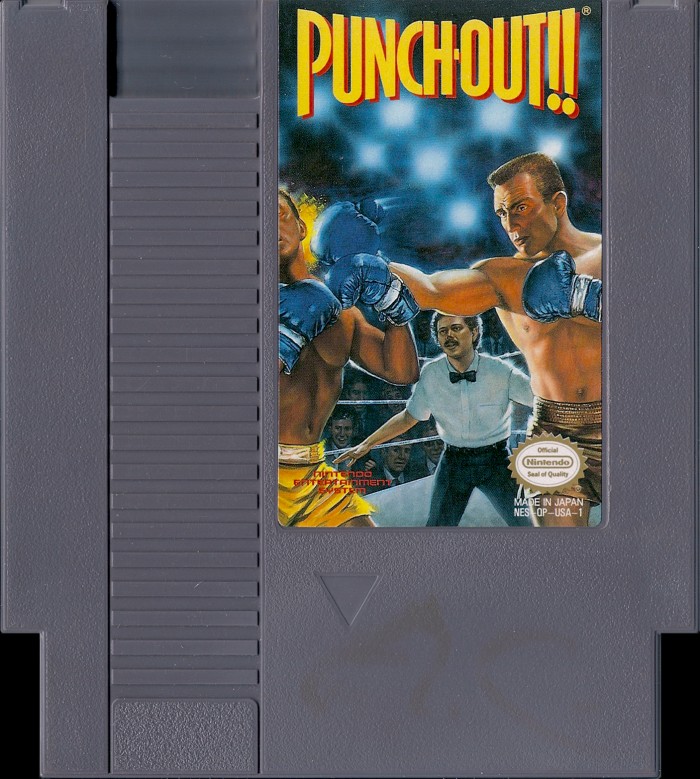

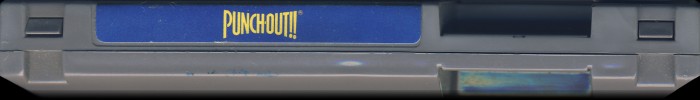

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-QP-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |

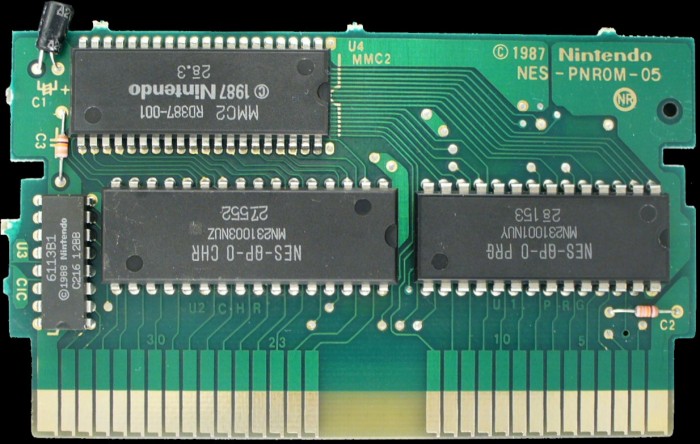

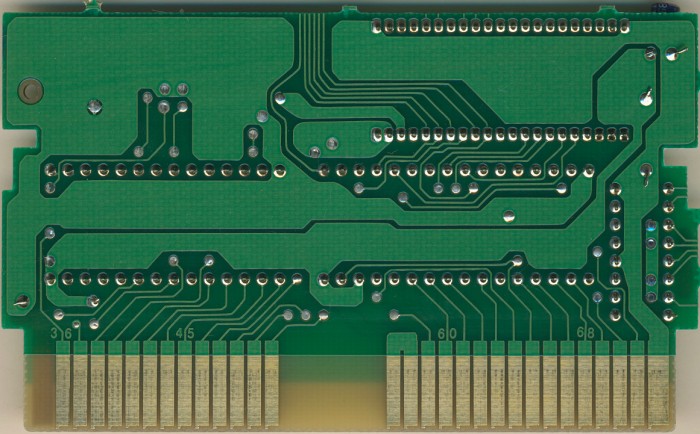

PCB Properties
| Name | NES-PNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9025 - 9232 (3) |
| Est First Run | June 1990 |
| PCB Class | NES-PNROM |
| iNES Mapper | 9 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-QP-0 PRG | 128 KB | C032E5B0 | 5 |
| CHR0 | NES-QP-0 CHR | 128 KB | 45D0C815 | 8 |
| N/A | ROMs Combined | 256 KB | B95E9E7F | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NUY | Mask ROM 128 KB | DIP-28 | 2 53 | 9231 | |
| U2 CHR | Panasonic | MN231003 NUZ | Mask ROM 128 KB | DIP-32 | 2 52 | 9230 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 216 C | 9216 | |
| U4 MMC2 | Panasonic | MMC2 | Nintendo MMC2 | DIP-42 | 2 | 9232 | RD387-001 |
