Release Info
| Catalog ID | NES-PM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1988 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

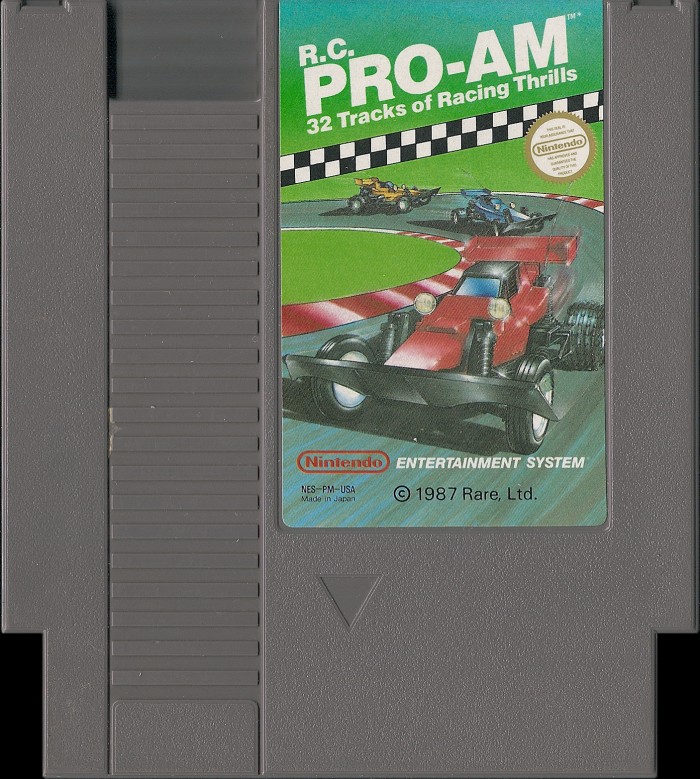

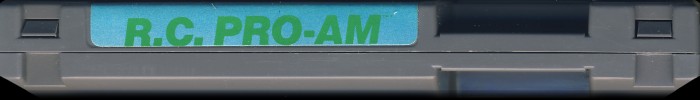

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PM-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-AN1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8806 - 8837 (3) |
| Est First Run | February 1988 |
| PCB Class | NES-AN1ROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113 |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-PM-0 PRG | 64 KB | DD062F9C | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5313 T0 | Mask ROM 64 KB | DIP-28 | 8806 E | 8806 | ||
| CHR-ROM | Sony | CXK5864PN-15L | SRAM 8 KB | DIP-28 | 8A 13 | 8801 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8748 A | 8748 | |
| Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 736 J | 8736 | ||
| Panasonic | MN74HC02 | 74-02 Series | DIP-14 | 7? | 8734 |
