Release Info
| Catalog ID | NES-LD-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1988 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | NES Controller |

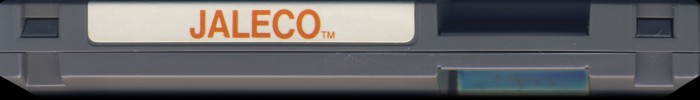

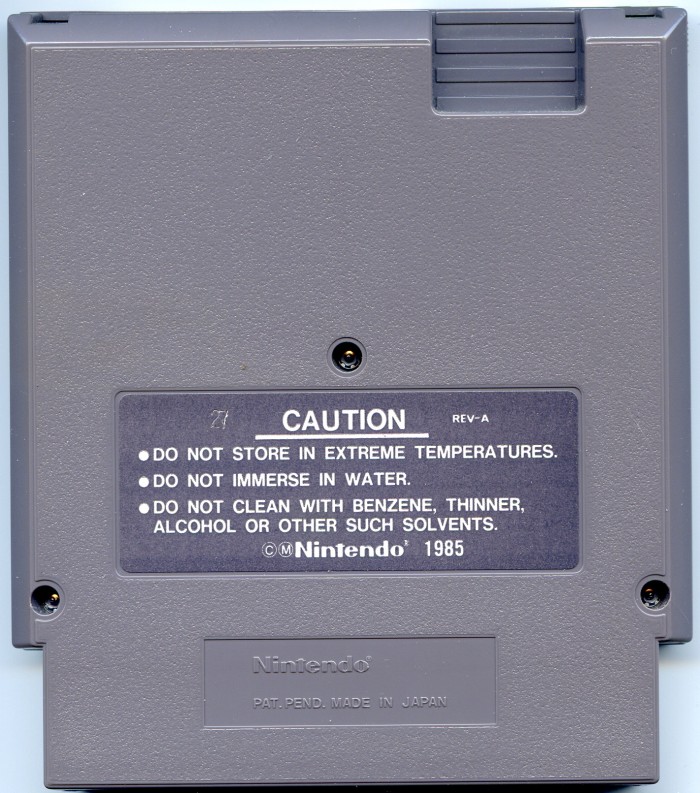

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

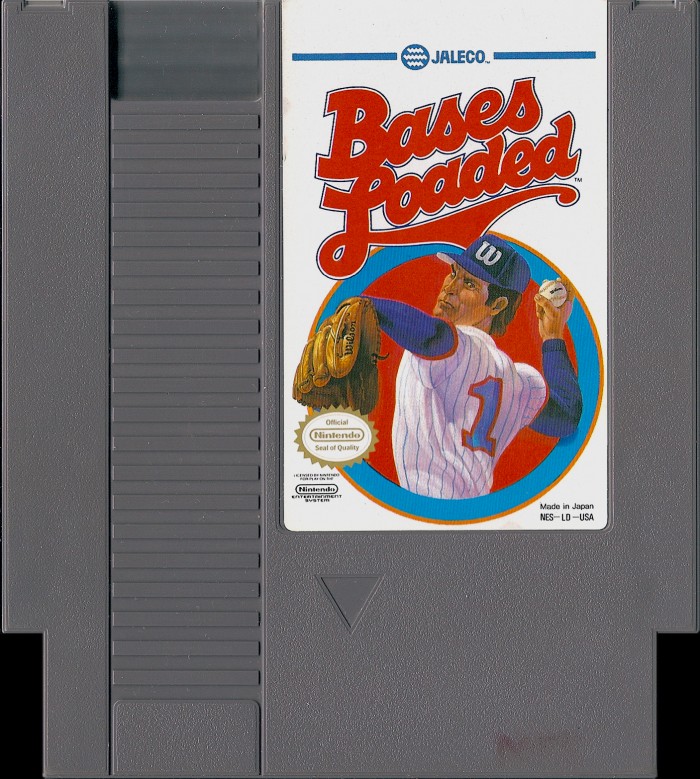

| Front Label ID | NES-LD-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 05 |

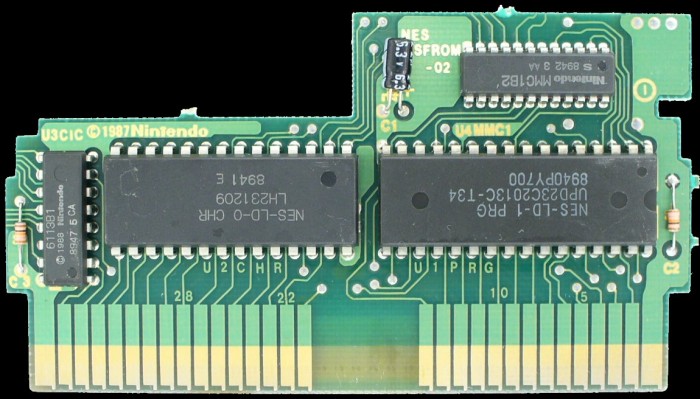

PCB Properties
| Name | NES-SFROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8826 - 8947 (5) |
| Est First Run | June 1988 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-LD-1 PRG | 256 KB | 778AAF25 | 2 |
| CHR0 | NES-LD-0 CHR | 64 KB | E472EC23 | 5 |
| N/A | ROMs Combined | 320 KB | DAEE19F2 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T34 | Mask ROM 256 KB | DIP-32 | 8940 PY700 | 8940 | |
| U2 CHR | Sharp | LH2312 09 | Mask ROM 64 KB | DIP-28 | 8941 E | 8941 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8947 5 CA | 8947 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8942 3 AA | 8942 |
