Release Info
| Catalog ID | NES-IR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1989 |
| Publisher | Acclaim |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

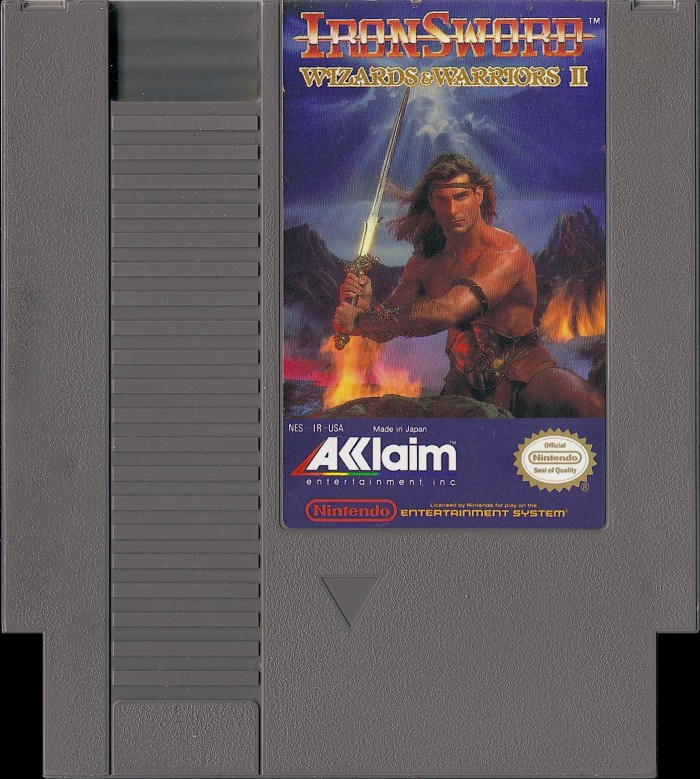

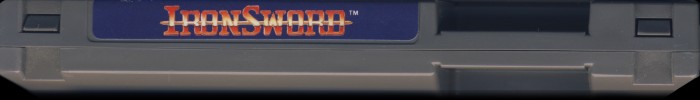

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IR-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9001 - 9014 (3) |
| Est First Run | January 1990 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-IR-0 PRG | 256 KB | 2328046E | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T39 | Mask ROM 256 KB | DIP-32 | 9011 PY011 | 9011 | |
| U2 CHR RAM | NEC | D4364C-15LL | SRAM 8 KB | DIP-28 | 8836 MU600 | 8836 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9003 7 CA | 9003 | |
| U4 HC161 | Motorola | MC74HC161A | 74-161 Series | DIP-16 | 8946 N A | 8946 |
