Release Info
| Catalog ID | NES-V8-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1991 |
| Publisher | THQ |
| Developer | Western Technologies |
| Players | 1 |
| Peripherals | NES Controller |

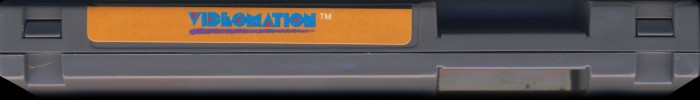

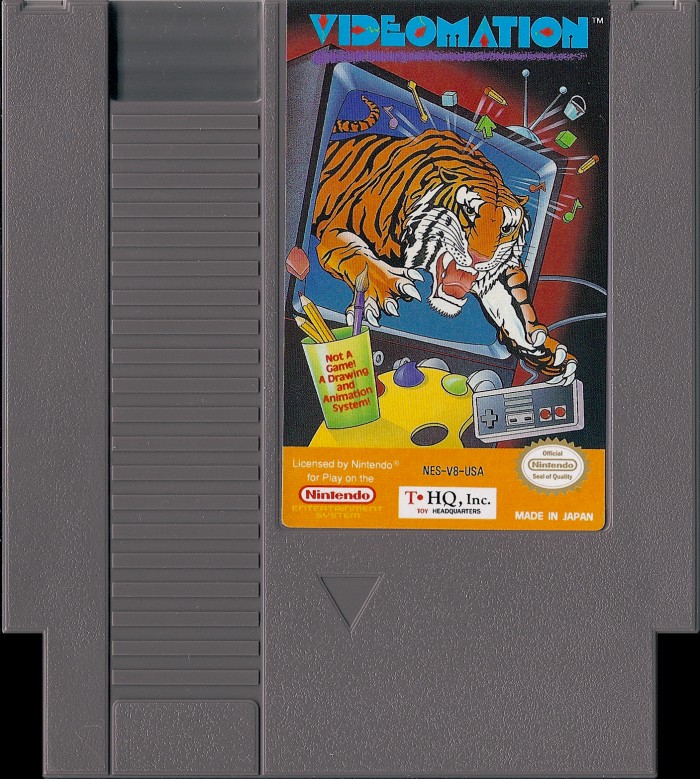

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-V8-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-CPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9118 - 9127 (2) |
| Est First Run | May 1991 |
| PCB Class | NES-CPROM |
| iNES Mapper | 13 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 16 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx04, 74xx08, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-V8-0 PRG | 32 KB | 5E66EAEA | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3217 | Mask ROM 32 KB | DIP-28 | 1GB 11 | 9127 | |
| U2 CHR-RAM | Hyundai | HY6264P-10LL | SRAM 8 KB | DIP-28 | 9123 D | 9123 | |
| U3 CHR-RAM | Hyundai | HY6264P-10LL | SRAM 8 KB | DIP-28 | 9123 D | 9123 | |
| U4 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 051 C | 9051 | |
| U5 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 040 EN | 9040 | |
| U6 | Texas Instruments | SN74HC08N | 74-08 Series | DIP-14 | 121 FR | 9121 | |
| U7 | Texas Instruments | SN74HC04N | 74-04 Series | DIP-14 | 124 ER | 9124 |
