Release Info
| Catalog ID | NES-8D-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1990 |
| Publisher | Milton Bradley |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

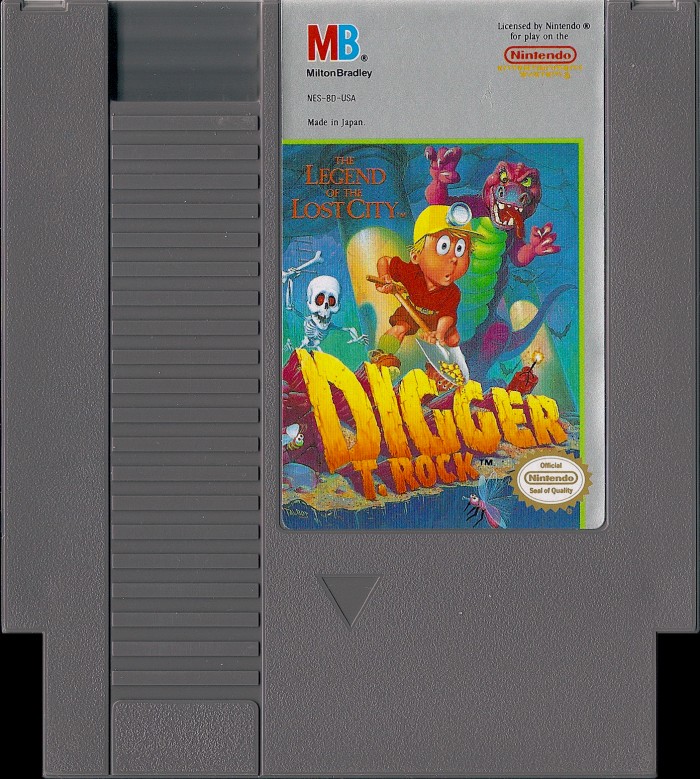

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-8D-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-AMROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9049 |
| Est First Run | December 1990 |
| PCB Class | NES-AMROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-8D-0 PRG | 128 KB | 1CEE0C21 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 95 | Mask ROM 128 KB | DIP-28 | 9049 E | 9049 | |
| U2 CHR-RAM | LSI Logic | LH5160F-10TL | SRAM 8 KB | DIP-28 | 037 D | 9037 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 042 C | 9042 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9030 | 9030 |
