Release Info
| Catalog ID | TGN-010-SH |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | Tengen |
| Developer | Sega |
| Players | 1 |
| Peripherals | NES Controller |

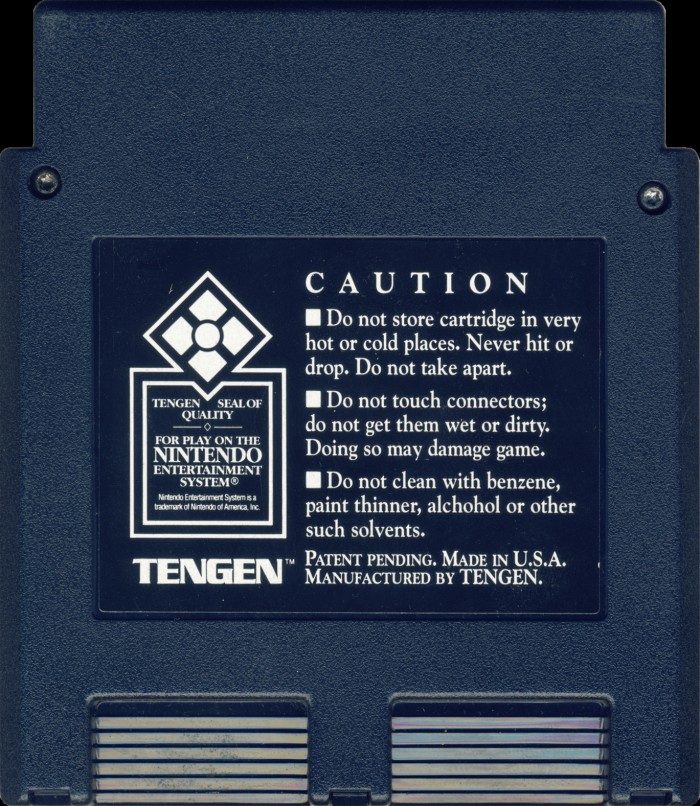

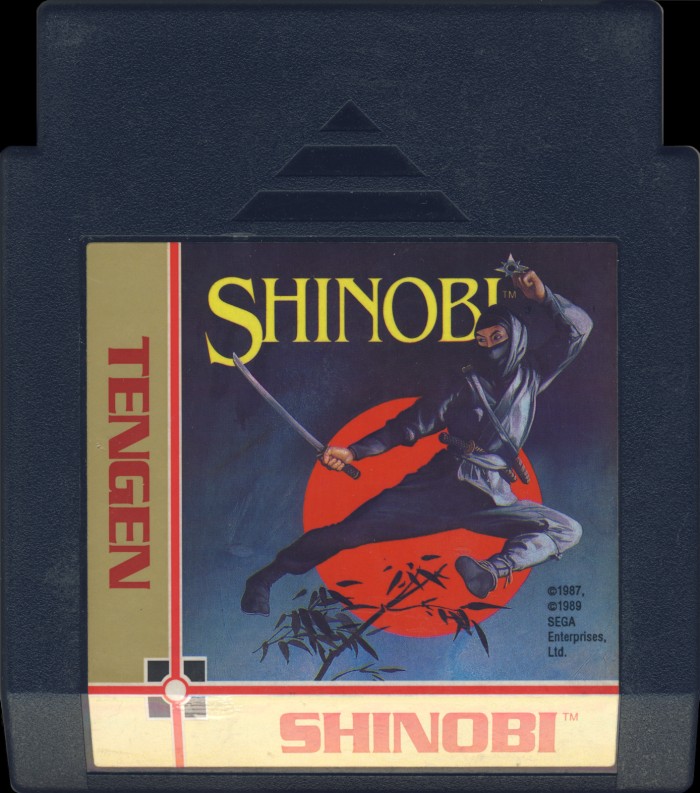

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

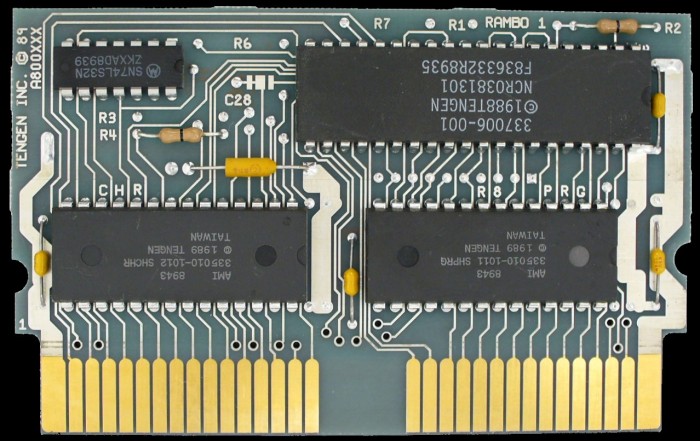

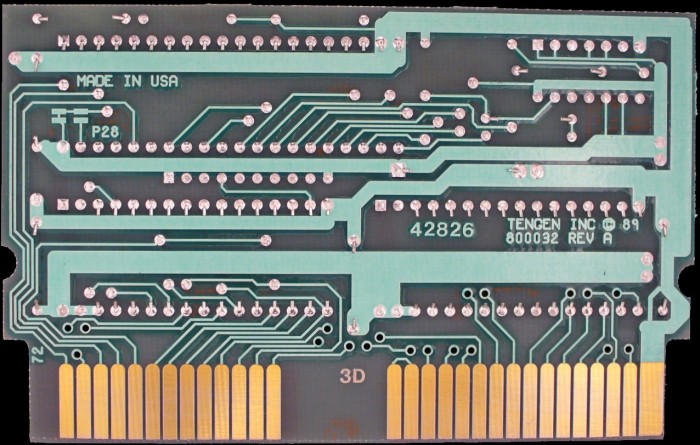

PCB Properties
| Name | 800032 REV A |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 8943 |
| Est First Run | October 1989 |
| PCB Class | TENGEN-800032 |
| iNES Mapper | 64 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337006 |
| Hardware | 337006, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335010-1011 SHPRG | 128 KB | DC270779 | 2 |
| CHR0 | 335010-1012 SHCHR | 128 KB | AAE9F037 | 2 |
| N/A | ROMs Combined | 256 KB | EB0BDA7E | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | AMI | AM231002 | Mask ROM 128 KB | DIP-28 | 8943 | 8943 | |
| CHR | AMI | AM231002 | Mask ROM 128 KB | DIP-28 | 8943 | 8943 | |
| RAMBO 1 | NCR | 337006-001 | Tengen RAMBO-1 | DIP-40 | 8935 F836332R | 8935 | NCR0381301 |
| Motorola | SN74LS32N | 74-32 Series | DIP-14 | 8939 ZKXAD | 8939 |
