Release Info
| Catalog ID | NES-MT-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

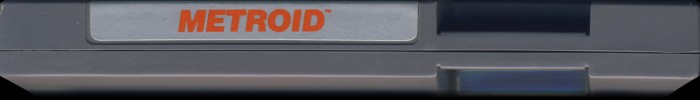

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 09 |
PCB Properties
| Name | NES-SNROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8729 - 9232 (5) |
| Est First Run | July 1987 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3193A |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-MT-0 PRG | 128 KB | 70080810 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
