Release Info
| Catalog ID | NES-UM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 12, 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

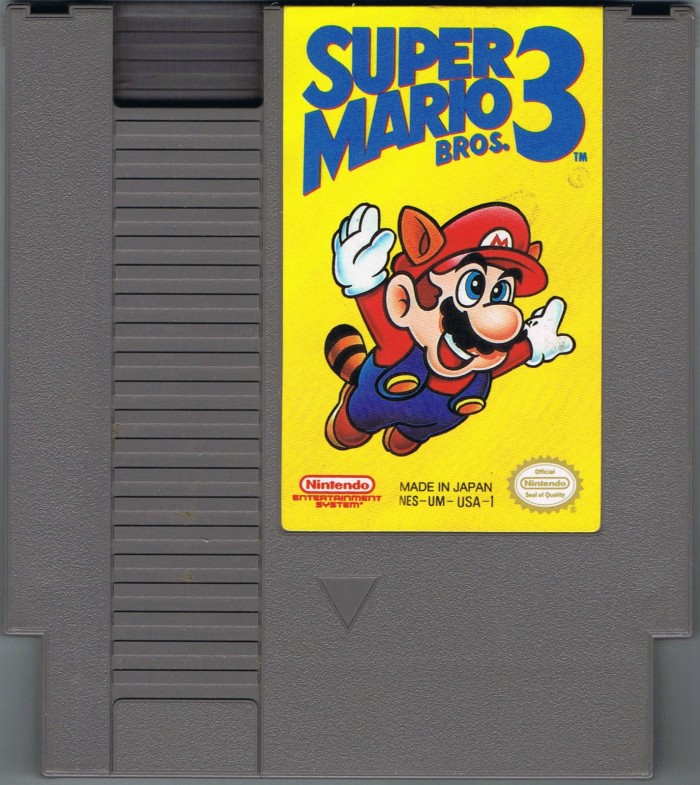

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UM-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-TSROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8951 - 9041 (8) |
| Est First Run | December 1989 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-UM-1 PRG | 256 KB | A0ED7D20 | 10 |
| CHR0 | NES-UM-0 CHR | 128 KB | C2928C49 | 15 |
| N/A | ROMs Combined | 384 KB | 2E6301ED | 10 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
