Release Info
| Catalog ID | AGCI-SW |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AGCI |
| Developer | AGCI |
| Players | 2 |
| Peripherals | NES Controller |

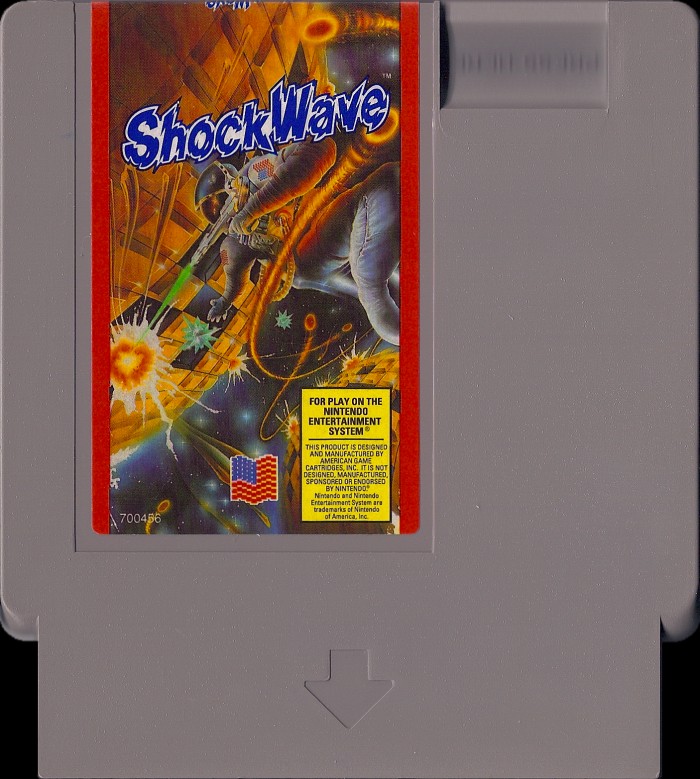

Cart Properties
| Cart Producer | AGCI |
|---|---|
| Color | Grey |
| Form Factor | Deep Grip |
| Embossed Text | AGCI Patent Pending |
| Front Label ID | 700456 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

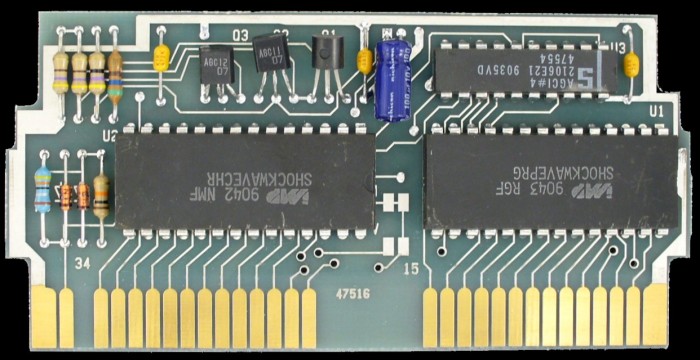

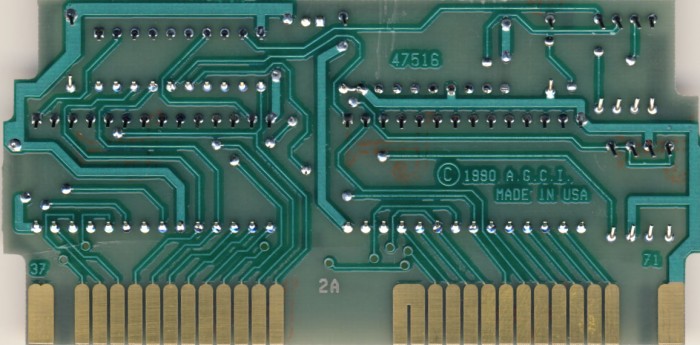

PCB Properties
| Name | 47516 |
|---|---|
| PCB Producer | AGCI |
| Manufacturer | Key Tronic |
| Mfg Range | 9043 |
| Est First Run | October 1990 |
| PCB Class | AGCI-47516 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHOCKWAVEPRG | 32 KB | 6CF4D165 | 1 |
| CHR0 | SHOCKWAVECHR | 32 KB | 70870A2D | 1 |
| N/A | ROMs Combined | 64 KB | C73B82FC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | IMP | IM23256 | Mask ROM 32 KB | DIP-28 | 9043 RGF | 9043 | |
| U2 | IMP | IM23256 | Mask ROM 32 KB | DIP-28 | 9042 NMF | 9042 | |
| U3 | Signetics | AGCI#4 | 74-377 Series | DIP-20 | 9035 VD 47554 | 9035 | 2106E21 |
