Release Info
| Catalog ID | NES-9R-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1992 |
| Publisher | Romstar |
| Developer | Pixel |
| Players | 2 |
| Peripherals | NES Controller |

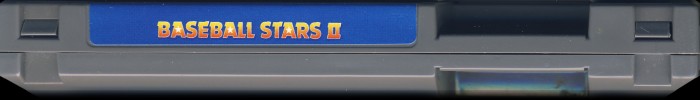

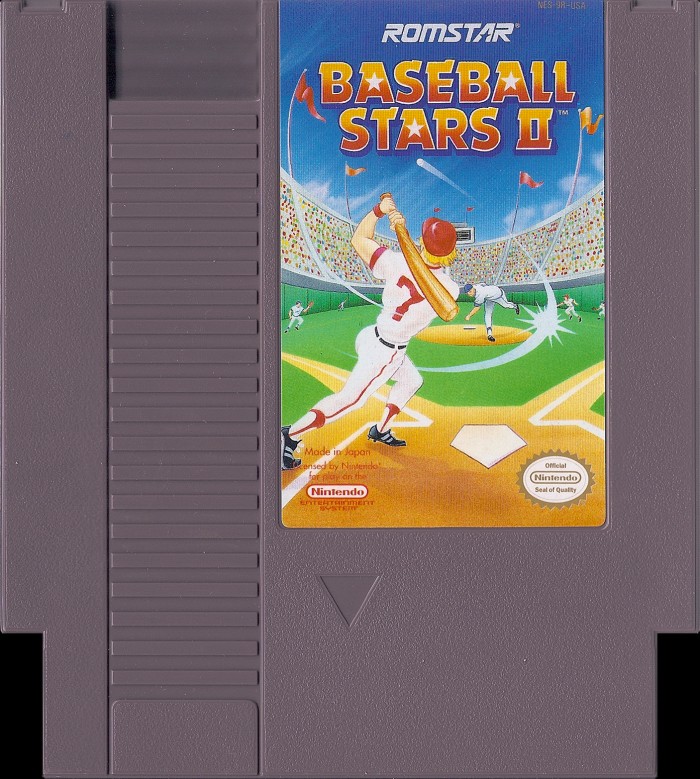

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-9R-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

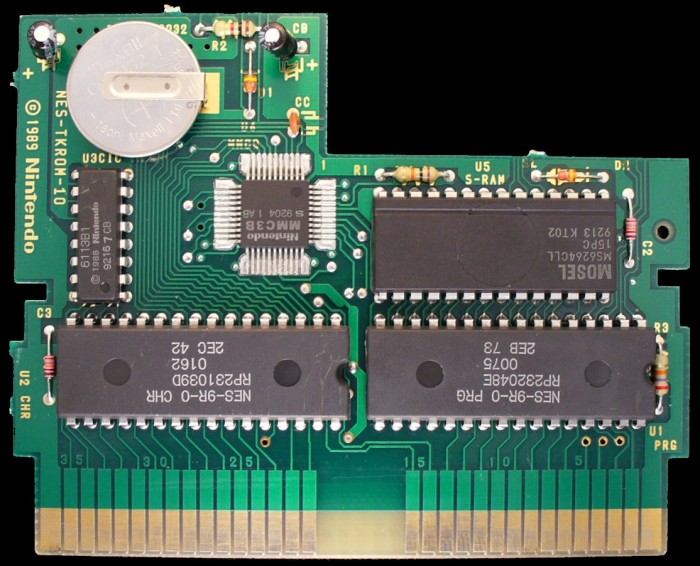

PCB Properties
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9218 - 9218 (2) |
| Est First Run | May 1992 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-9R-0 PRG | 256 KB | E84F40E5 | 2 |
| CHR0 | NES-9R-0 CHR | 128 KB | 1A3EA032 | 2 |
| N/A | ROMs Combined | 384 KB | 18A9F0D9 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048E 0075 | Mask ROM 256 KB | DIP-32 | 2EB 73 | 9218 | |
| U2 CHR | Ricoh | RP231039D 0162 | Mask ROM 128 KB | DIP-32 | 2EC 42 | 9218 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9216 7 CB | 9216 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9204 1 AB | 9204 | |
| U5 S-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9213 KT02 | 9213 |
