Release Info
| Catalog ID | NES-TQ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Vic Tokai |
| Developer | Nichibutsu |
| Players | 2 |
| Peripherals | NES Controller |

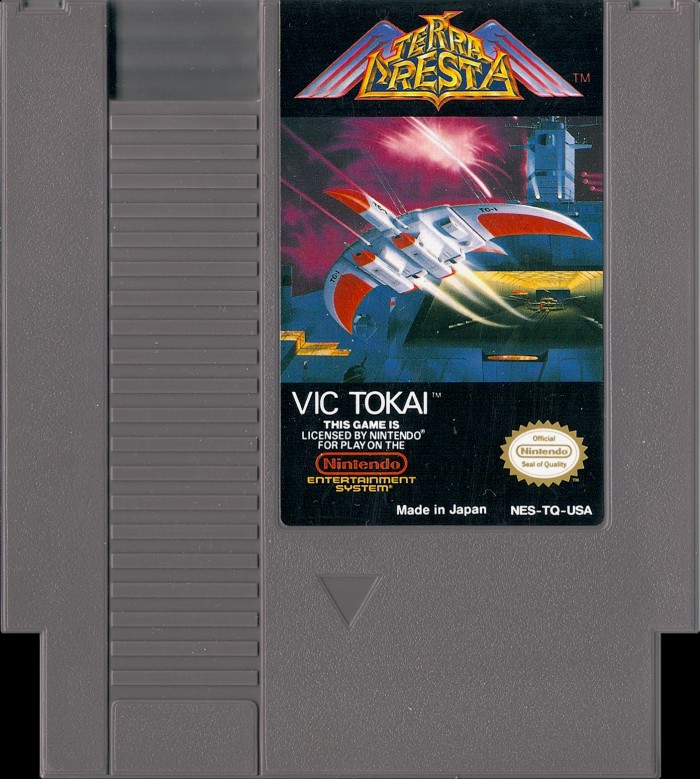

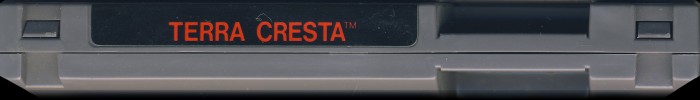

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-TQ-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 07 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9003 |
| Est First Run | January 1990 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-TQ-0 PRG | 128 KB | 2A46B57F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5405 | Mask ROM 128 KB | DIP-28 | 0A3 A3 | 9003 | |
| U2 CHR RAM | Samsung | KM6264AL-10 | SRAM 8 KB | DIP-28 | 948 N | 8948 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8949 3 AA | 8949 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 8941 | 8941 | |
| U5 HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | 8951 | 8951 |
