Release Info
| Catalog ID | NES-HV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Data East |
| Developer | Data East |
| Players | 2 |
| Peripherals | NES Controller |

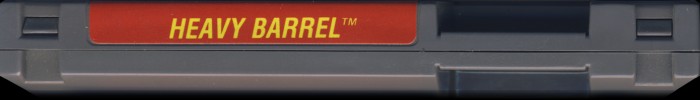

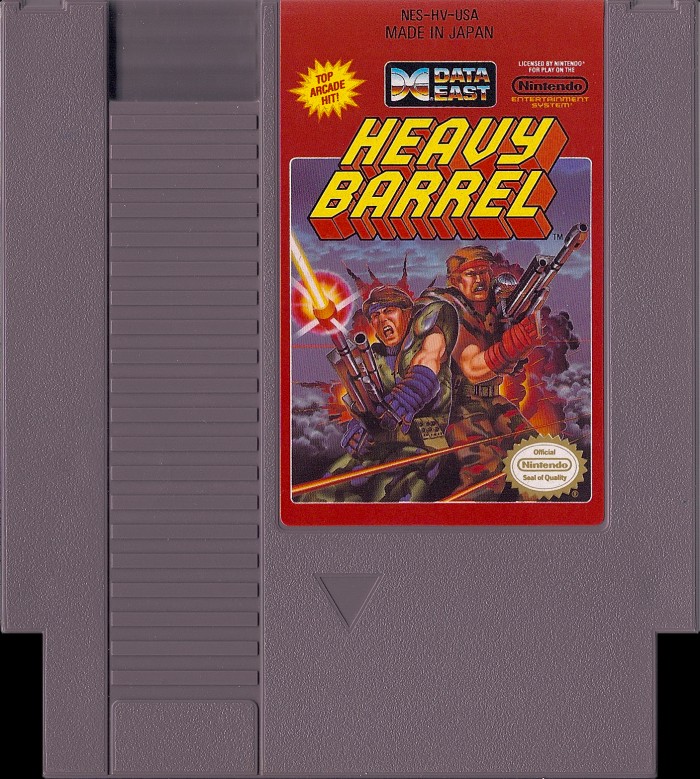

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-HV-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

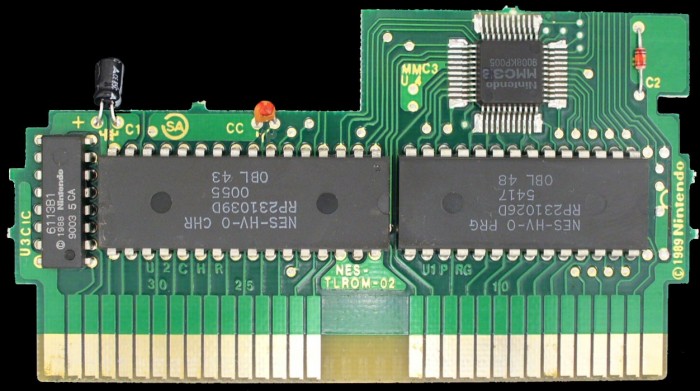

PCB Properties
| Name | NES-TLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9008 - 9014 (2) |
| Est First Run | February 1990 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-HV-0 PRG | 128 KB | B4D554D6 | 3 |
| CHR0 | NES-HV-0 CHR | 128 KB | D070AEFC | 3 |
| N/A | ROMs Combined | 256 KB | 34EAB034 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5417 | Mask ROM 128 KB | DIP-28 | 0BL 48 | 9007 | |
| U2 CHR | Ricoh | RP231039D 0055 | Mask ROM 128 KB | DIP-32 | 0BL 43 | 9007 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9003 5 CA | 9003 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9008 KP005 | 9008 |
