Release Info
| Catalog ID | NES-NB-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Nintendo |
| Developer | TOSE Software |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

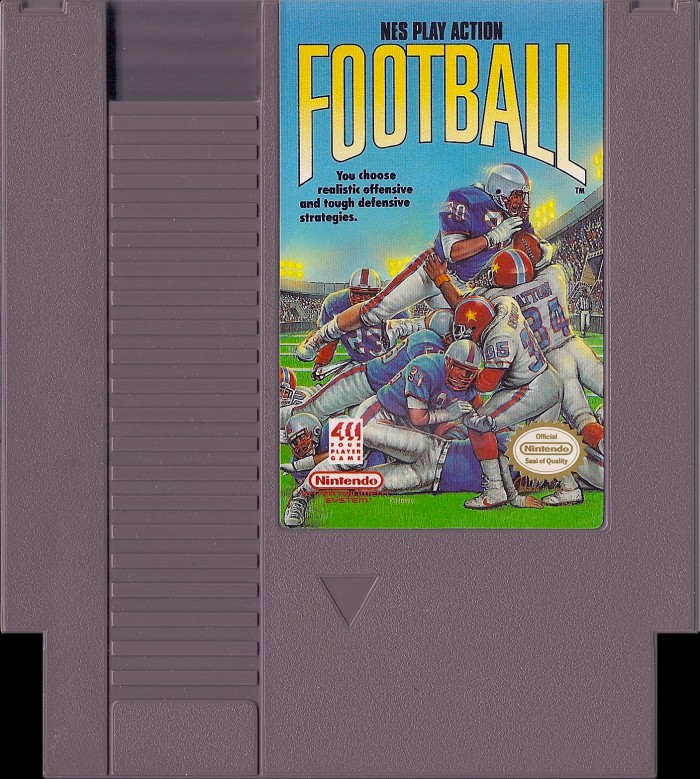

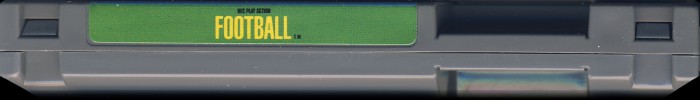

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-NB-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

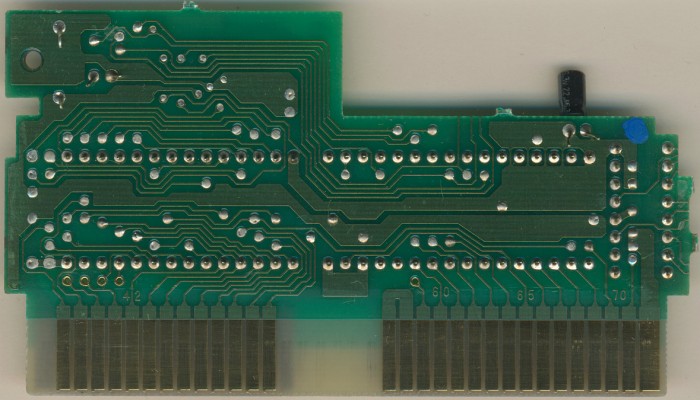

PCB Properties
| Name | NES-TLSROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9033 - 9034 (2) |
| Est First Run | August 1990 |
| PCB Class | NES-TLSROM |
| iNES Mapper | 118 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-NB-0 PRG | 128 KB | 17F72EC8 | 3 |
| CHR0 | NES-NB-0 CHR | 128 KB | 6E8CAE8D | 3 |
| N/A | ROMs Combined | 256 KB | B9B4D9E0 | 3 |

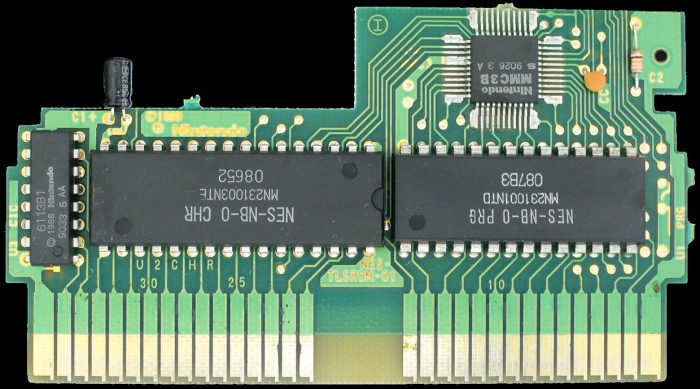

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NTD | Mask ROM 128 KB | DIP-28 | 087 B3 | 9033 | |
| U2 CHR | Panasonic | MN231003 NTE | Mask ROM 128 KB | DIP-32 | 086 52 | 9033 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9033 5 AA | 9033 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9026 3 A | 9026 |
