Release Info
| Catalog ID | NES-JF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Tradewest |
| Developer | Software Creations |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

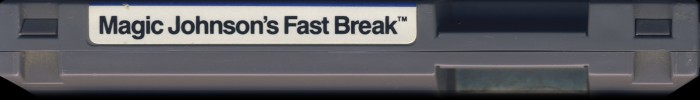

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

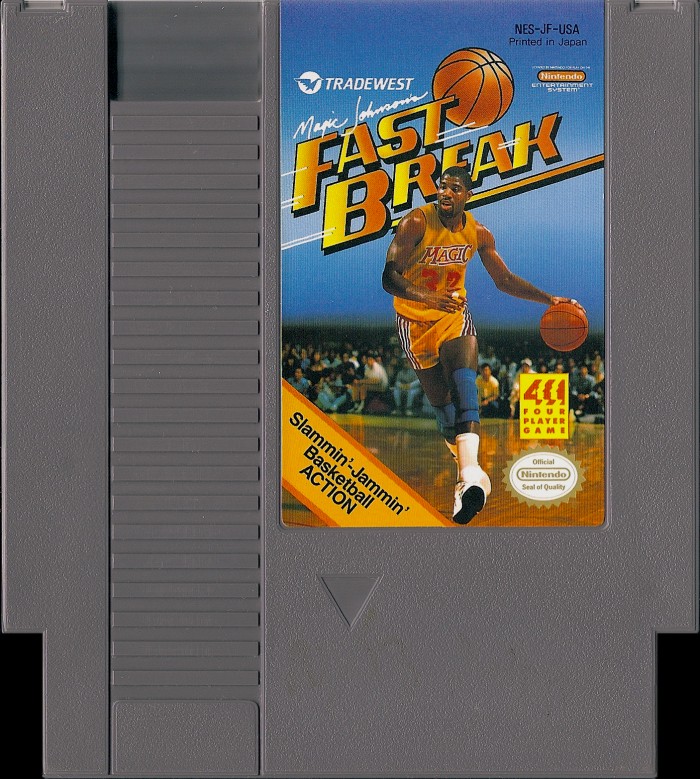

| Front Label ID | NES-JF-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |

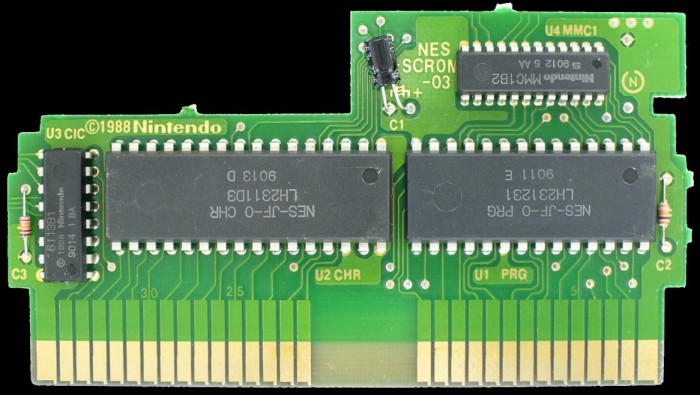

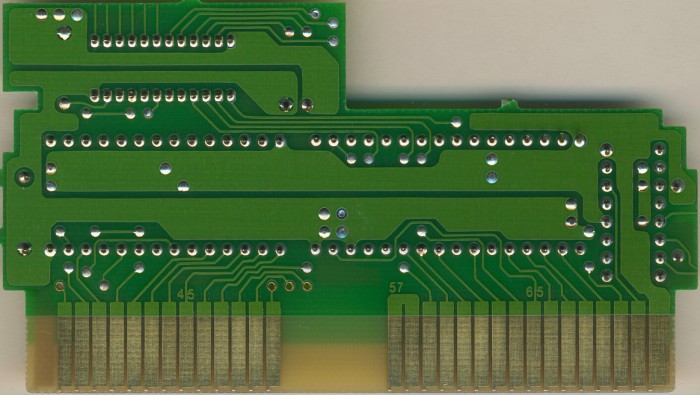

PCB Properties
| Name | NES-SCROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9014 |
| Est First Run | April 1990 |
| PCB Class | NES-SCROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-JF-0 PRG | 64 KB | 3A9DD55C | 2 |
| CHR0 | NES-JF-0 CHR | 128 KB | 2C8C2D3E | 2 |
| N/A | ROMs Combined | 192 KB | C6C2EDB5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2312 31 | Mask ROM 64 KB | DIP-28 | 9011 E | 9011 | |
| U2 CHR | Sharp | LH2311 D3 | Mask ROM 128 KB | DIP-32 | 9013 D | 9013 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9014 1 BA | 9014 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9012 5 AA | 9012 |
