Release Info
| Catalog ID | NES-NZ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1989 |
| Publisher | Koei |
| Developer | Koei |
| Players | 8 |
| Peripherals | NES Controller |

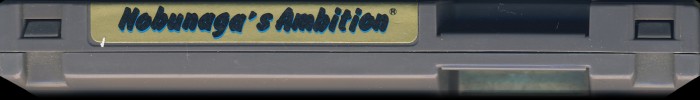

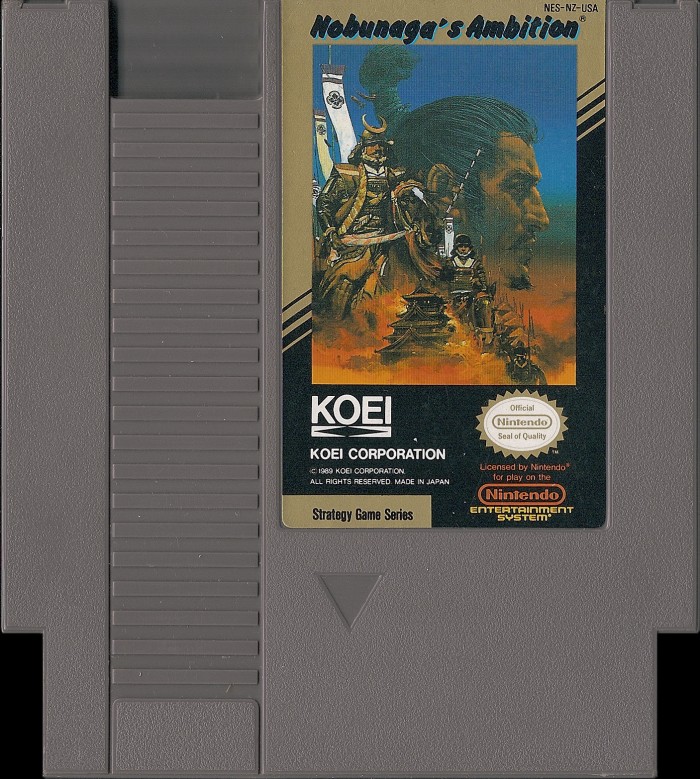

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-NZ-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 09 |
PCB Properties
| Name | NES-SOROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8917 |
| Est First Run | April 1989 |
| PCB Class | NES-SOROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 16 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-NZ-0 PRG | 256 KB | 4642DDA6 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 65 | Mask ROM 256 KB | DIP-32 | 8917 D | 8917 | |
| U2 CHR RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 92 Y60 | 8905 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8917 3 AA | 8917 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8917 7 A | 8917 | |
| U5 W-RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 93 116 | 8909 | |
| U6 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8917 1 Y | 8917 |
